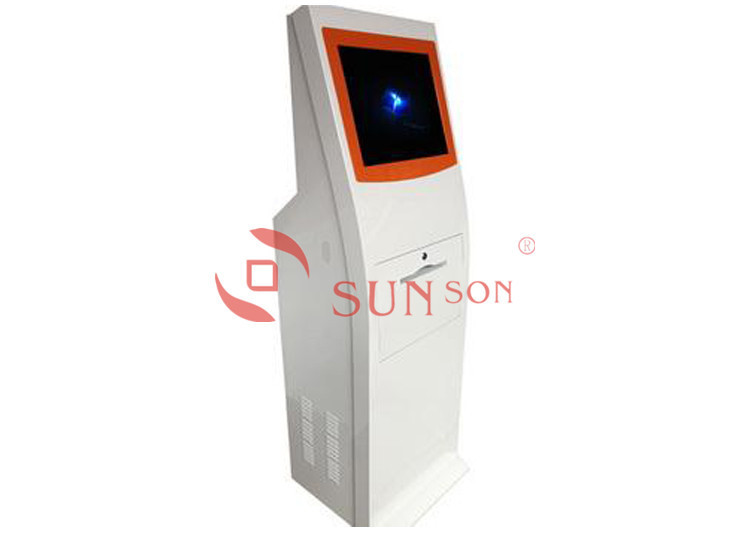

Name: Cash Deposit Withdraw Touch Screen Information Kiosk Display Money Transfer
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: SK605F
Price: Negotiable USD
Availability: InStock

Home Products USB Data Transfer Cable

Cash Deposit Withdraw Touch Screen Information Kiosk Display Money Transfer

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Sunson or ODM/OEM
Certification:	CE, ISO
Model Number:	SK605F

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	Negotiable up to the order quantity
Packaging Details:	Film Wrap, Foam, Seaworthy Polywood Case
Delivery Time:	25-35 days upon payment
Payment Terms:	T/T or Western Union
Supply Ability:	Max 2000 units per month

Contact Now

Detailed Product Description

Customized Applications::	Front Access Semi-bunch Bill Dispenser Banking Kiosk	Usage Environment::	Indoor&Semi Outdoor
Basic Configurations::	PC,10.1-65inch Touchmonitor, Free Standing Enclosure	Optional Configurations::	Speaker,metal Keyboard,card Reader,receipt Printer,wifi,etc
Basic Applications::	Internet Access,advertisement Display, Receipt Print,etc	Optional Applications::	Card&bill Payment, Card Issue,ticket Print,document Scan,etc
Enclosure Feature::	Durable Steel, Powder Painting Finish, Any Color/logo Options, Custom Design, Easy Maintenance.	Software Support::	Windows(XP/Window7/8)/Linux/Android OS Available, Offer Kiosk Hardware Drivers/SDK For Software Develop.
Color:	Optional	Logo:	Customize Service Supported
Highlight:	Multi Touch Kiosk

Cash Deposit Withdraw Touch Screen Information Kiosk Display Money Transfer

About us

Shenzhen Sunson Tech Co. Ltd is a high-tech company professionally engaged in developing, manufacturing and marketing special peripherals (input devices) of ATM, kiosk, self-service terminals, Ultrasound etc.

Specification

Components	Details
PC system	Industrial Board		Seavo/ Gigabyte/Advantech AIMB 562
	CPU		Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
	RAM		2GB /4 GB / 8GB
	HDD		500G
	Interface		6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
	PC Power Supply		HUNTKEY/Great Wall
AUO LCD monitor	Screen Size		17 inch/19inch ( optional from 8inch to 65inch)
	Brightness		300cd/m2
	angle		horizontal 100°above;Vertical 80°above
	Contrast		1000:1
	Backlight tube life		more than 40,000hours
	Max. resolution		1280×1024
Touch screen	Screen Size		17/19 inch Diagonal ( optional from 8inch to 65inch)
	Resolution		4096x4096
	High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Bank/Credit Card Reader	Interface	RS232
	Card Type	Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card
	Power Voltage	DC 24V±5%
	Card Entry method	Magnetic signal, Optoelectronic signal and rear card signal
Encrypted Pinpad	Keylift~span	2,000,000 cycles
	Key force	2~3N
	Key trip	>2.5mm
	Protection level	ip65
Cashcode Bill acceptor	Validation Rate	96% or higher
	Banknote Insertion	Four-way
	Escrow	One banknote
	Capacity	1000 notes Max
Coin Acceptor	Coin Acceptance	Max 32 coin types, in 216 or 132 channels
	Detection ability of counterfeit Coins	with high detection ability of counterfeit coins
	Accepting Speed	2 Coins/Sec
	Supply Voltage	10V-16V DC
Epson receipt thermal printer	Autocutter	included
	Technology	Thermal printing
	Paper width	80mm/60mm optional
	Printing speed	150mm/s
	Data buffer	4KB
	Interface	RS232 ,USB
UPS	Input voltage	145-290va
	Output voltage	200-255va
	Max time for supplying a single PC	3~20minutes (for single PC)
Digital Power Supply	AC input voltage range	100~240VAC
	Frequency	50Hz to 60Hz
	AC input voltage range	100~240VAC
	Frequency	50Hz to 60Hz
Accessories	Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System	Windows 7 or Windows XP operation system without license
KIOSK Cabinet	Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing	Security Packing method with bubble foam and wooden case
