LED Driver Power Supply

High Efficency 30W waterproof power supply  For LED Light EMC IP67 Constant Current 12V









Quick Detail:

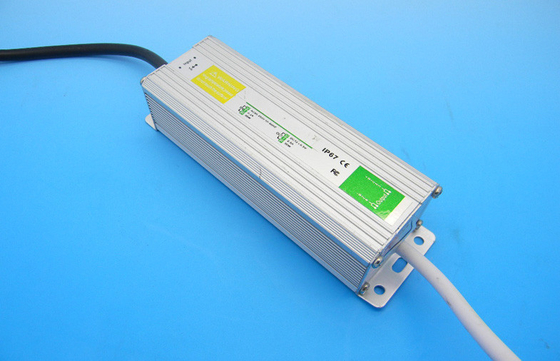

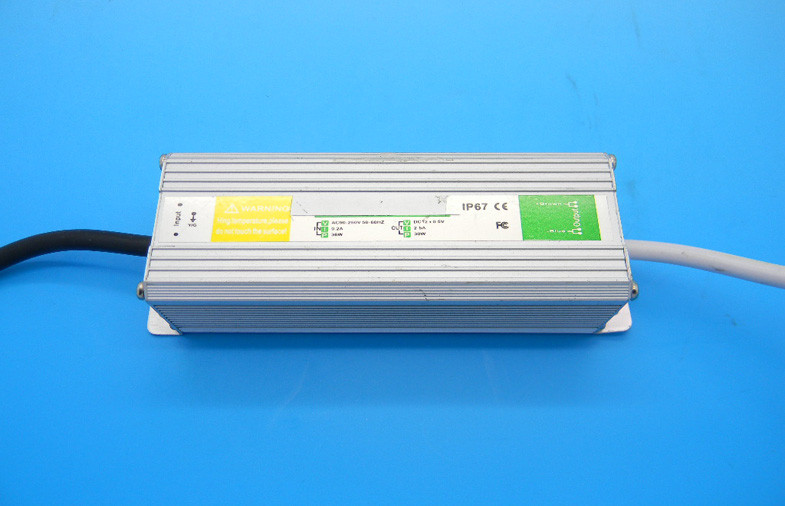

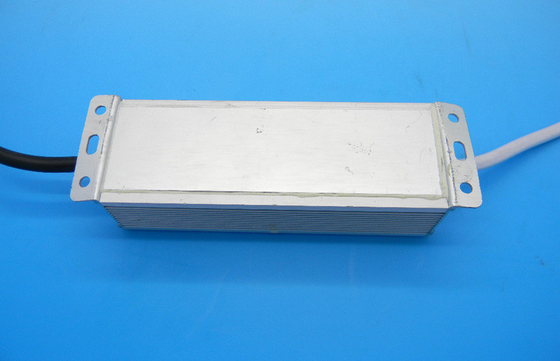

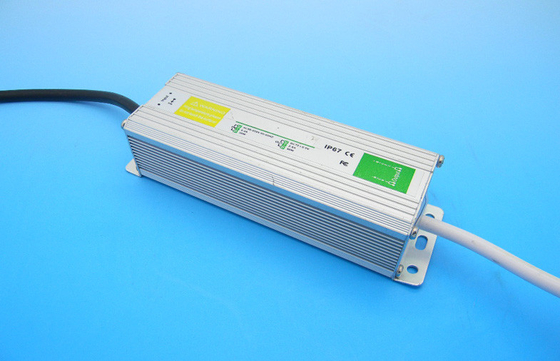

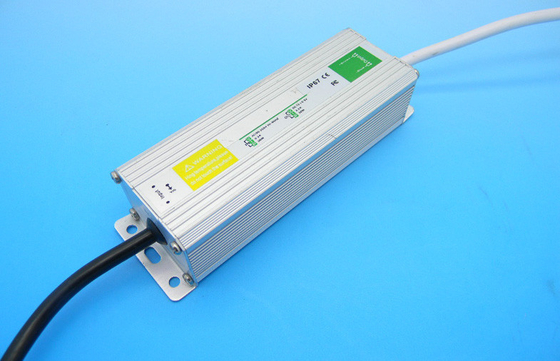

Aluminum cased switching power supply, LED waterproof driver 30W. input voltage 100-240V, 47~63Hz,in conformity with CE, RoHS, FCC certification.





Specs:



Input: AC100-240V, 0.2A max.

Frequency: 47/63Hz

Output: DC12V, 2.5A

Water Resistance: IP67

Cable: 2X0.75mm2, 20cm length.

Inrush Current: Cold start current 60A at 240Vac.





Features:



feature 1:led lighting transformers

feature 2:AC 110V-220V Waterproof Power Supply

feature 3:Power Supply For LED Light









Approval: CE, RoHS, FCC

Warranty: 2 years





Description:



IP67 waterproof LED driver for indoor and out door using, 12V,2.5A, total power 30W, aluminum cased.





Note:



1) Please calculate the output power correctly, and do not make it work under over load circumstance,  avoid to touch the case when using.

2) Avoid output short circuit, if no output, please repeat using it after 1 minute shut off.

3) Please make sure correct wire connecting before using the power supply.





Applications:



1) LED accessories for waterproof led flexible ribbon, led rigid bar, led strip lights etc.

2) This safety driver is good used with electronic equipment, IT equipment, small home appliance





Specifications:



Input	Rated Input Voltage	AC100~240V
	Input Voltage Range	AC 90~264V
	Rated Frequency	50/60 Hz
	Input Frequency Range	47~63 Hz
	Power Factor	>0.93
	Input AC Current	0.2A
	Inrush Current	Cold start 20A at100Vac, 60A at 240Vac.
Output	Rated Output Voltage	DC12V±5%
	Rated Output Current	2.5A
	Rated Power	30W
	Ripple and Noise	200mV p-p
	Turn-on	50ms @ full load(typical)
	Hold-up	20ms @ full load(typical)
	Over Voltage Protection	Yes, 105%--150%
	Over Current Protection	Yes, 130%-150%
	Short Circuit Protection	Hiccup type, automatically recover after short circuit remove.
Reliability	Hi-pot	3750Vac
	Leakage Current	5mA/240VAC
	Withstanding Voltage	I/P-O/P,I/P-FG: 3.75KVAC,O/P-FG:1.75KVAC,1 min
	Insulation Resistance	Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ 25°C/70% RH
	EMI Standards	FCC Part 15B Class B
	RoHS Compliant	Yes
	MTBF	50,000 hours
	Burn-in	40+/-5 ℃, full load, 4 hours
Environmental	Operating Temperature	-10~60℃
	Operating Humidity	10~90%
	Storage Temperature	-20~85℃
	Storage Humidity	0~95%
Safety Approvals	CE, RoHS,FCC
Warranty	2 Years





Competitive Advantage:



-Open private model w/o extra cost for you;

-0.3% free backup of order quantity;

-Direct factory price without middle man;

-High performance-to-price ratio;

-Perfect after-sale service.
