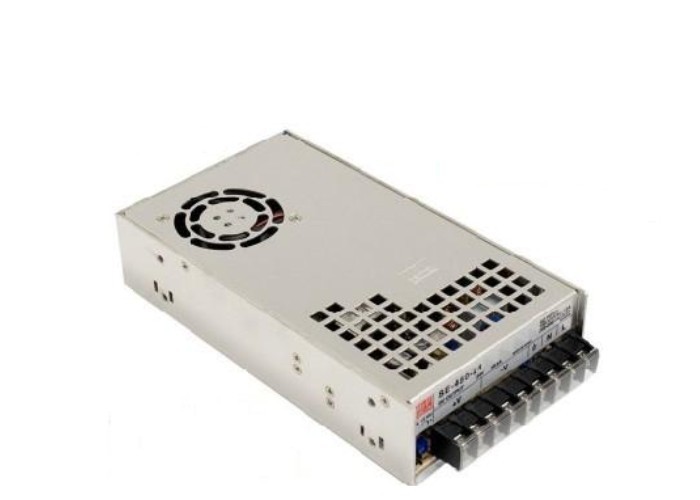

Name: 12V / 24V SE-450 AC DC LED Power Supply Voltage LED Driver
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: SE-450 Single Output Switching Power Supply
Price: Negotiable USD
Availability: InStock

Home Products Constant Voltage LED Driver

12V / 24V SE-450 AC DC LED Power Supply Voltage LED Driver

Product Details:

Place of Origin:	China
Brand Name:	Meanwell
Certification:	CE,ROHS, TUV, UL
Model Number:	SE-450 Single Output Switching Power Supply

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export Standard Packaging
Delivery Time:	5-7 work days after receiving deposit
Payment Terms:	Ex works
Supply Ability:	30000pcs/month

Contact Now

Detailed Product Description

DIMENSION:	22512450mm (LWH)	Protections:	Short Circuit / Overload / Over Voltage / Over Temperature
PACKING:	1.25Kg;12PCS/16Kg/1CUFT	Over Voltage Protection:	115%~145%
EMC EMISSION:	Compliance To EN55022 (CISPR22) Class B, EN61000-3-2,-3	DC Voltage:	3.3V, 5V, 12V, 15V, 24V, 36V, 48V
Overload Protection:	105%~150% Shut Down O/p Voltage, Repower On To Recover	Warranty:	2 Years
Highlight:	high power led power supply

Meanwell SE-450 AC DC LED Power Supply 12V 24V Constant Voltage LED Driver

Enclosed SE Series 100w-450w Miniature Features:
1. AC input selectable by switch
2. Withstand 300VAC surge input for 5 seconds (SE-200/350)
3. Protections: Short circuit / Overload / Over voltage / Over temperature (except for SE-100)
4. Forced air cooling by built-in DC fan (SE-350/450)
5. Built-in fan ON/OFF control (SE-350)
6. Built-in constant current limiting circuit (SE-200/350)
7. Withstand 5G vibration test (SE-200/350)
8. Built-in remote sense function (SE-450)
9. 100% full load burn-in test
10. LED indicator for power on
11. 2 years warranty

SE Series SE-350 Single Output Switching Power Supply Features:
1. AC input active surge current limiting
2. AC input range selected by switch
3. Protections: Short circuit / Overload / Over voltage / Over temperature.
4. Forced air cooling by built-in DC ball bearing fan
5. Built-in remote sense function
6. LED indicator for power on
7. UL approved
9. 2 years warranty

Enclosed Switching Power Supplies
SE Series:
Single Output Switching Power Supply: SE-100, SE-200, SE-350, SE-450, SE-600, SE-1000, SE-1500

Quick Details of 450w Single Output LED Switching Power Supply:

450W-Single Output
Model No.	Output	Tol.	R&N	Effi.
SE-450-3.3	3.3V, 0~75A	±3%	200mV	74%
SE-450-5	5V, 0~75A	±3%	200mV	78%
SE-450-12	12V, 0~37.5A	±1%	200mV	83%
SE-450-15	15V, 0~30A	±1%	200mV	84%
SE-450-24	24V, 0~18.8A	±1.5%	200mV	86%
SE-450-36	36V, 0~12.5A	±1%	200mV	86%
SE-450-48	48V, 0~9.4A	±1%	200mV	88%

SE Series 100w to 450w Specfications:

Model No.		SE-100	SE-200	SE-350	SE-450
AC input voltage range		115/230VAC by switch
AC inrush current (max.)		Cold start, 36A at 230VAC	Cold start, 55A at 230VAC	Cold start, 60A at 230VAC	Cold start, 55A at 230VAC
DC adjustment range		-5%~+10% rated output voltage	±10% rated output voltage
Overload protection	Range	110%~150%	105%~150%	105%~135%	105%~150%
Overload protection	Type	Hiccup mode, auto-recovery	Constant current limiting, auto-recovery		Shut down o/p voltage, repower on to recover
Over voltage protection		115%~135%	115%~145%
Withstand voltage		I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P-FG: 0.5kVAC
Working temperature		-20~+60°C	-20~+60°C	-20~+60°C	-10~+60°C (refer to output derating curve)
Safety standards		UL60950-1, GB4943(SE-100 only) approved
EMC standards		EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254 for SE-100 only
Connection		7P/9.5mm pitch terminal block 9P/9.5mm pitch terminal block with cover 9P/11mm pitch terminal block with cover
Dimension (LxWxH)(mm)		159x 97x 38	215x 115x 50		225x 124x 50
Case No.		901	912E	912C	986A
Packing		30pcs/17.5kg	12pcs/12kg	12pcs/13.5kg	12pcs/16kg

NOTE:
1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.

SE-450 Series Datasheet:

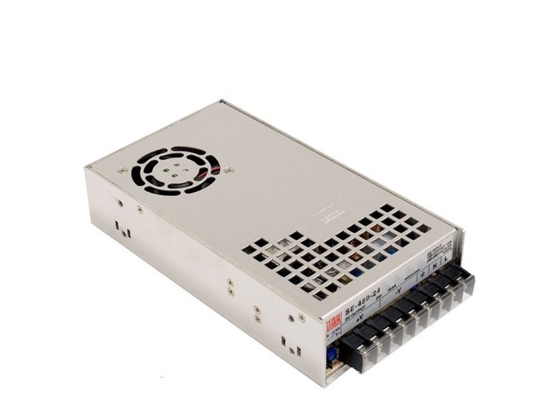

12V / 24V SE-450 AC DC LED Power Supply Voltage LED Driver 0
