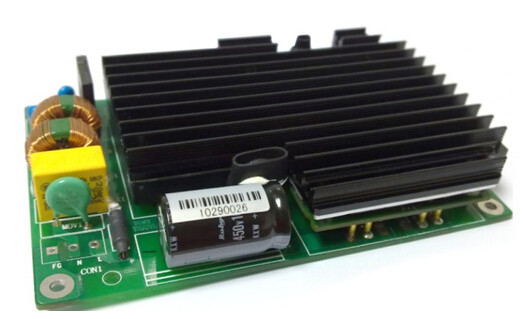

High frequency switching 100W AC-DC Power Supplies Output 48V SC100-220S48

Product Details:

Place of Origin:	China
Brand Name:	Enargy
Model Number:	SC100-220S48

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Delivery Time:	1-8 Weeks
Payment Terms:	Negotiation
Supply Ability:	15000Pcs/week

Contact Now

Detailed Product Description

Highlight:	ac to dc power supply

AC-DC Power Supplies 100W Output 48V SC100-220S48

Key Features

High output power: 100W

Input range: 85~264Vac

High efficiency: 85%

Line regulation: ≤±1%

Load regulation: ≤±2%

Fixed frequency: 220kHz

Isolation Voltage :1500Vdc

Short circuit protection

Output over current protection

Over temperature protection

Product Overview

This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.

Electric Characteristics

Input Characteristics

Parameter	Min	Typ	Max	Units	Notes
Rated input voltage		220		Vac
AC input voltage range	85		264	Vac
Rated AC input frequency		50/60		Hz
AC input frequency range	47		63	Hz
Max. input current			2	A	Min. input voltage, full load
Efficiency		85		%	Rated input voltage, rated load

Output Characteristics

Parameter		Min	Typ	Max	Units	Notes
Output voltage range		47.52	48	48.48	Vdc
Output current range		0.1		2.1	A
Line Regulation				±1	%
Load Regulation				±2	%
Ripple & noise				800	mV	Rated input, full load, 20 MHz bandwidth
Dynamic response	Deviation			±1	%	25% to 50% to 25% Iout max, 50% to 75% to 50% Iout max,0. 1A/us
Dynamic response	Settling time			500	uS	To within 1% Vout nom.
Output voltage overshoot				1	%
Output Capacitance			470		μF

Protection Characteristics

Parameter	Min	Typ	Max	Units	Notes
Output over load protection	2.3		2.8	A	Hiccup
Short – Circuit Protection			10	mΩ	Hiccup
Over-temperature protection		105		℃	Auto recovery

General Characteristics

Parameter	Min	Typ	Max	Units	Notes
MTBF	100			KHrs	TR-NWT-000332, 80% load, 300LFM, 40℃ Ta
Weight			300	g

Environmental Characteristics

Parameter	Min	Typ	Max	Units	Notes
Operating temperature	-20		+55	℃
Storage temperature	-40		+85	℃
Relative humidity	10		90	%
Altitude			3000	m

Safety Characteristics

Parameter		Min	Typ	Max	Units	Notes
Isolation voltage	Input to output	1500			Vdc	10mA/1min, No arcing and breakdown
	Input to ground	1000			Vdc	10mA/1min, No arcing and breakdown
	Output to ground	500			Vdc	7.5mA/1min, No arcing and breakdown
Isolation resistance	Input to output	100			MΩ	500Vdc/1min, normal atmospheric pressure, 90% humidity

Environmental Qualification

Parameter	Notes
Vibration	Frequency range: 5-20Hz,+3dB/otc; 20-80Hz,0.04g2/Hz; 80-500Hz, -3dB/ot c ; X.Y.Z axes, 30min/axis
Mechanical Shock	Half-sine wave, 300m/s2,11ms, ±X,±Y,±Z, 6tims/direction
Cold(in operation)	IEC60068-2-1 Ad
Damp heat	IEC60068-2-67 Cy
Temperature Cycling	-20°C to 85°C, ramp 15°C/min., 500 cycles
Power/Thermal Cycling	Vin = min to max, full load, 100 cycles
Design Marginality	Tmin-10°C to Tmax+10°C, 5°C steps, Vin = min to max, 0-105% load
Life Test	95% rated Vin and load, units at derating point, >5000 hours
Solder ability	IEC60068-2-20
