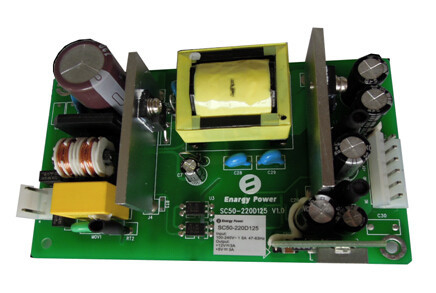

Name: IEC60601-1-2 50W AC-DC Power Supplies Output 12V 5V Power converter SC50-220D125
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: SC50-220D125
Price: Negotiable USD
Availability: InStock

Home Products Open Frame Power Supplies

IEC60601-1-2 50W AC-DC Power Supplies Output 12V 5V Power converter SC50-220D125

Product Details:

Place of Origin:	China
Brand Name:	Enargy
Model Number:	SC50-220D125

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Delivery Time:	1-8 Weeks
Payment Terms:	Negotiation
Supply Ability:	15000Pcs/week

Contact Now

Detailed Product Description

Highlight:	12v ac/dc power supply

AC-DC Power Supplies 50W Output 12V5V SC50-220D125

Key Features

AC input range: 90~264Vac

Dual outputs: 12V/3.0A,5V/3.0A

High efficiency: 85%

Line regulation: ≤±2%

Load regulation: ≤±2%

short circuit protection

Output over current protection

Output over voltage protection

Natural cool

RoHS compliant

UL94V-0 flame-retarded rating

Product Overview

This AC-DC converter use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency switching provides high power density with low noise and high efficiency.

Electric Characteristics

Input Characteristics

Parameter	Min	Typ	Max	Units	Notes
Rated input voltage	100	220	240	Vac
AC input voltage range	90		264	Vac
Rated AC input frequency		50/60		Hz
AC input frequency range	47		63	Hz
Max. input current			1.5	A	Min. input voltage, full load
Input inrush current			60	A	240Vac,25℃, first start
Efficiency	85			%	220Vac, full load

Output Characteristics

Parameter		Min	Typ	Max	Units	Notes
Output voltage range	5V	4.90	5.00	5.10	Vdc
Output voltage range	12V	11.76	12.00	12.24	Vdc
Output current range	5V	0		3.0	A
Output current range	12V	0		3.0	A
Line Regulation				±2	%
Load Regulation				±2	%
Ripple & noise	5V			100	mV	Rated input, full load, 20 MHz bandwidth
Ripple & noise	12V			150	mV	Rated input, full load, 20 MHz bandwidth
Dynamic response	Deviation			±5	%	25% to 50% to 25% Iout max, 50% to 75% to 50% Iout max, 0.1A/us
Dynamic response	Settling time			400	uS	To within 1% Vout nom.
Turn-on rise time				50	ms	Full load,10%~90% Vout
Output voltage overshoot				±5	%
Output Capacitance				2200	μF

Protection Characteristics

Parameter	Min	Typ	Max	Units	Notes
Output over voltage protection	13		16	Vdc	Latch off
Output over load protection	5.0		7.0	A	Hiccup
Short – Circuit Protection			10	mΩ	Hiccup

General Characteristics

Parameter	Min	Typ	Max	Units	Notes
MTBF	250			KHrs	Rated input, full load,25℃
Weight			180	g

Environmental Characteristics

Parameter	Min	Typ	Max	Units	Notes
Operating temperature	0		+70	℃
Storage temperature	-20		+85	℃
Relative humidity	20		90	%RH
Storage humidity	10		95	%RH
Altitude			3000	m

Safety Characteristics

Parameter		Min	Typ	Max	Units	Notes
Isolation voltage	Input to output	4000			Vac	10mA/1min, No arcing and breakdown
	Input to ground	1500			Vac	10mA/1min, No arcing and breakdown
	Output to ground	500			Vac	10mA/1min, No arcing and breakdown
Isolation resistance	Input to output	10			MΩ	500Vdc/1min, normal atmospheric pressure, 90% humidity

EMC Characteristics

Item		Standards	Conditions	Notes
CE		EN55011 IEC60601-1-2	Class B	Pass system test
RE		EN55011 IEC60601-1-2	Class B	Pass system test
Harmonic		EN61000-3-2	Class A equipments requirements	Criterion B
Voltage fluctuations and flicker		EN61000-3-3	Class A equipments requirements	Criterion B
Surge		EN61000-4-5	Differential mode ±1KV,common mode±2KV	Criterion B
DIP		EN61000-4-11 EN55024	Voltage dip to 0%Ut,10ms	Criterion B, test at phase 0, 90, 180 and 270

			Voltage dip to 40%Ut, 20ms
			Voltage dip to 70%Ut,50ms
ESD	Air discharge	EN61000-4-2	±8KV	Criterion B
ESD	Contact discharge	EN61000-4-2	±4KV	Criterion B

Notes:

Criterion A: Normal performance during and after test.

Criterion B: Low-voltage protection or reset is not allowed. Temporary output voltage fluctuation ceases after disturbances ceases, and from which the EUT recovers its normal performance automatically. During the system test, output voltage fluctuation or reset is not allowed too.

Criterion C: Temporary loss of output is allowed, but the hardware can’t be damaged. The EUT recovers its normal performance automatically or operator intervention.

Criterion R: Loss of output which is not recoverable is allowed. The primary protective component (fuse) can be damaged. The EUT recovers its normal performance after replace the damaged component.

Physical Information

Mechanical Outline

Length×width×heigth:127.0×76.0×37.0(mm), 5×2.99×1.46(in),

IEC60601-1-2 50W AC-DC Power Supplies Output 12V 5V Power converter SC50-220D125 0

Connector designations

Item	No.	Function
J1	1	L input
	2	NC
	3	N input
J3	1	12V vout+
	2	5V vout+
	3	5V vout+
	4	Vout-
	5	Vout-
	6	NC

Notes:

Derating curve of the module when ambient temperature over 50℃

IEC60601-1-2 50W AC-DC Power Supplies Output 12V 5V Power converter SC50-220D125 1
