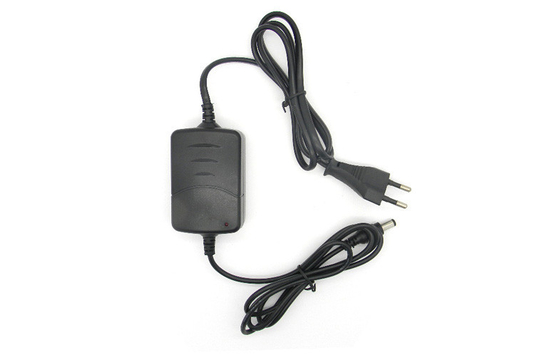

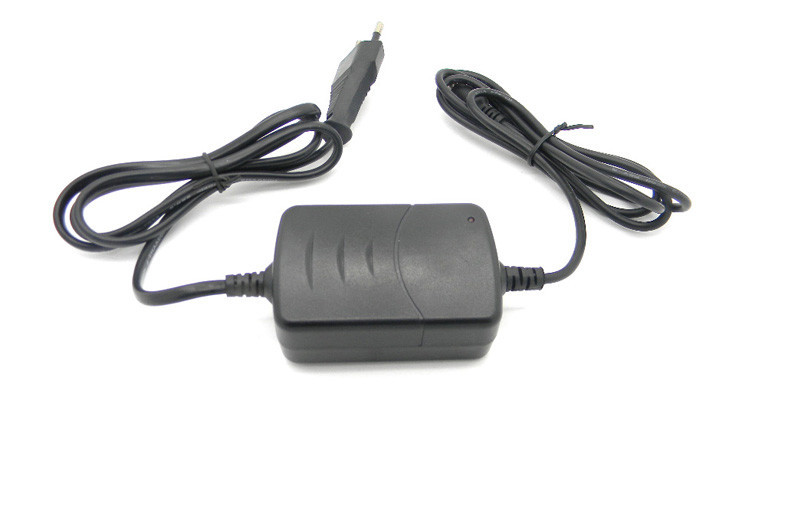

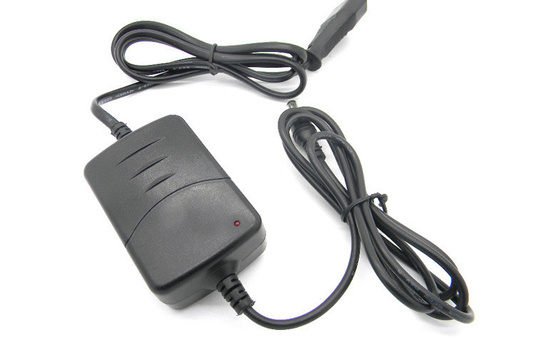

Factory direct sale Desktop power Adapter12V1000mA, Two ends cable power supply
Quick Detail:
Function 1:1a desktop power supply
Function 2:12v adapter charger
Function 3:12w switching adapter
Reference:12w 12v 1a
Specs:
Input: AC100-240V, 0.2A max.
Frequency: 50/60Hz
Output: DC12V, 1A
DC Cable: 22AWG, Copper, length: 1.2M
Plug: EU, UK, US, SAA, CCC
Features:
- Worldwide voltage input;
- High efficiency:>83%;
- Protection: Short circuit protection, over voltage protection, over current protection.
- MTBF: 50,000 hours.
Approval: CE, RoHS, FCC
Warranty: 1years
Description:

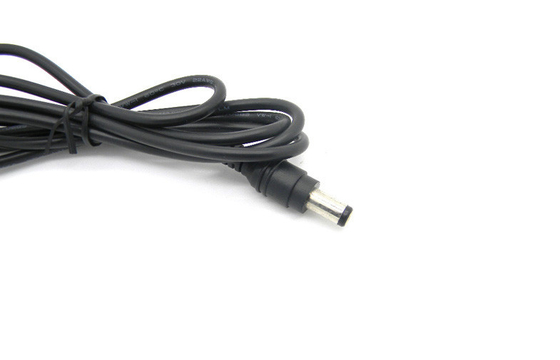

This is an AC power adapter, desktop adapter, come with single output tip 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.
Note: indoor use only.
Applications:
Widely used for Router, POS System, Security Cameras, Tablets etc.
Specifications:
|
Input
|
Rated Input Voltage
|
AC100~240V
|
|
Input Voltage Range
|
AC 90~264V
|
|
Rated Frequency
|
50/60 Hz
|
|
Input Frequency Range
|
47~63 Hz
|
|
Input AC Current
|
0.2A
|
|
Inrush Current
|
30A
|
|
Output
|
Rated Output Voltage
|
DC12V
|
|
Rated Output Current
|
1000mA
|
|
Rated Power
|
24W
|
|
Ripple and Noise
|
150mV p-p
|
|
Standby Power Consumption
|
0.5W
|
|
Turn-on
|
5s
|
|
Hold-up
|
20s
|
|
Over Voltage Protection
|
Yes
|
|
Over Current Protection
|
Yes
|
|
Short Circuit Protection
|
Yes, automatically recover after short circuit removed.
|
|
Reliability
|
Hi-pot
|
3000Vac
|
|
Insulation Resistance
|
Input to output at 500Vdc
|
|
Leakage Current
|
5mA
|
|
EMI Standards
|
FCC Part 15B Class B
|
|
RoHS Compliant
|
Yes
|
|
MTBF
|
50,000 hours
|
|
Burn-in
|
40+/-5 ℃, full load, 4 hours
|
|
Drop Test
|
6 direction, each one time from height 1.0M
|
|
Environmental
|
Operating Temperature
|
0~40℃
|
|
Operating Humidity
|
10~80%
|
|
Storage Temperature
|
-20~65℃
|
|
Storage Humidity
|
0~90%
|
|
Safety Approvals
|
CE, RoHS, FCC, UL, SAA
|
|
Warranty
|
2 Years
|
Competitive Advantage:
- Open private model w/o extra cost for you;
- 0.3% free backup of order quantity;
- Direct factory price without middle man.
- High performance-to-price ratio;
- Perfect after-sale service
