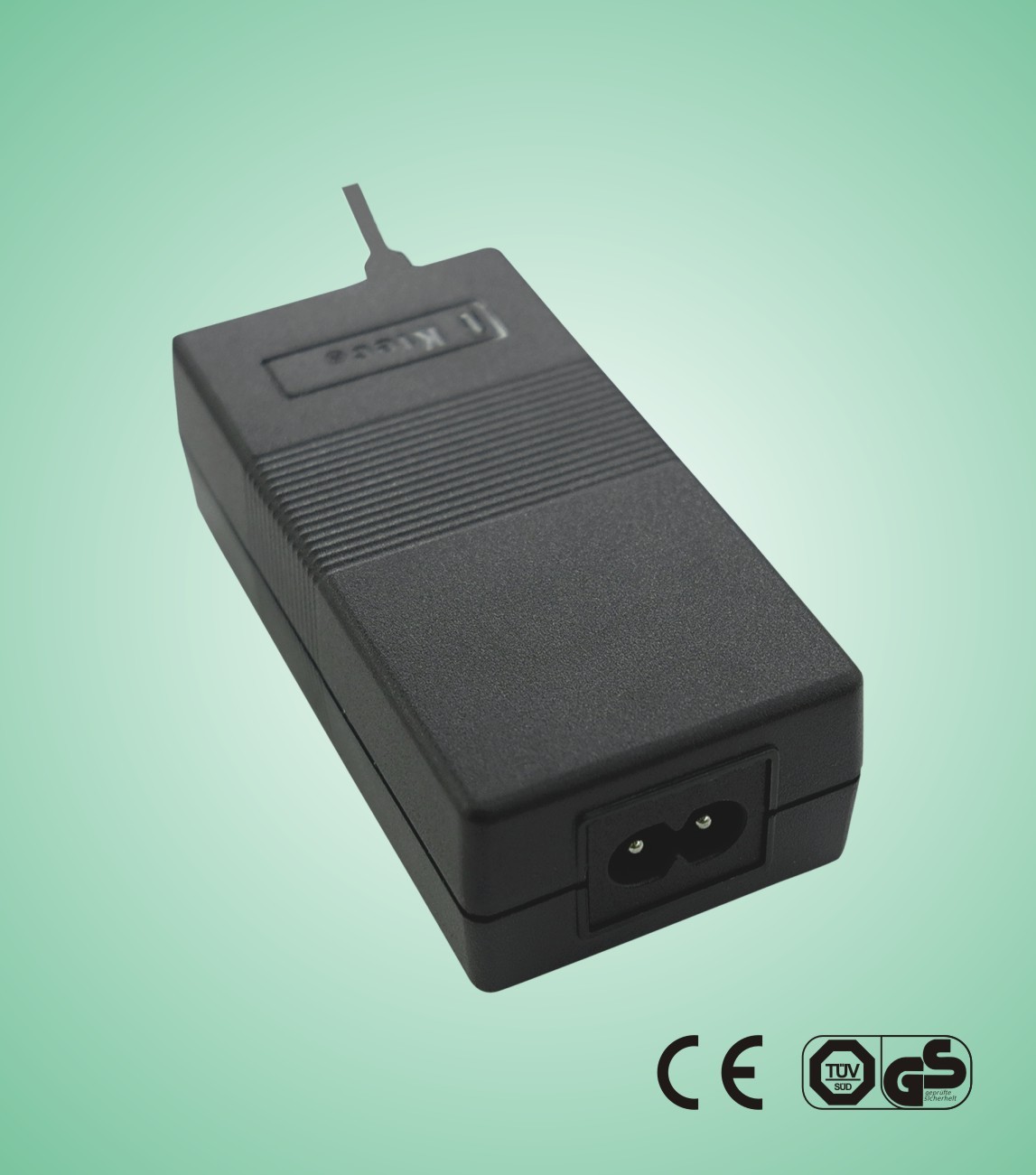

40W Desttop Switching Adapter Power

40W Desttop Switching Adapter Power

  • 40W Desttop Switching Adapter Power
40W Desttop Switching Adapter Power
Product Details:
Place of Origin: Guangdong, China (Mainland)
Certification: UL,CCC,GS,TUV,C-Tick
Model Number: KSAP040
Output Type: DC
Usage: Laptop
Connection: Desktop
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Piece/Pieces
Price: Negotiable
Packaging Details: PE bag+ white box
Payment Terms: T/T
Supply Ability: 300000 Piece/Pieces per Day
FOB: Shenzhen HK
Contact Now
Detailed Product Description
Highlight:

switching power supply adapter

Key Features of KSAP040 series

●Light, extra slim, sleek, compact design

●Green power, full complies with CEC level V, MEPS V EUP2011

●High power density

●Extra safe design, have got their respective safety approvals

●Completed protect function



Key Applications of KSAP040 series

It’s suitable for an extremely wide range of applications, including:

●Mobile Devices

●Laptop

●Printer

●Pos

●Set-top-box

●ADSL

●Hard disk drive

●Audio & Video product

●Household appliance

Input

●Input Voltage:  90 to 264 VAC

●Frequency:      47-50/60-63hz

●Input   current:0.8A(MAX)100/240VAC

●Inrush current:80AMax 120VAC at max Load

●Leakage current:0.25 mA Max

Output

●Over voltage protection

●Over current protection

  at 110-200% of lo and Auto-recovery

●Electronic short circuit protection

●Operatingtemperature 0~45℃Free convection

●Operating humidity 10-90% RH Non Condensing

●Sea level Non-operating temperature -20~80℃

Safety standards

●Information technology equipment

●IEC/EN 60950-1

Certificates and approvals

 ●CB , GS , CE

EMI Emission

●Radiation Test&Conduction Test: EN 55022/FCC Part 15

●Harmonic Test : EN 61000-3-2

●Flicker       Test : EN 61000-3-3

EMS immunity

● ESD  Test:EN 61000-4-2

 ●RS     Test:EN 61000-4-3

 ●EFT    Test:EN 61000-4-4

●Surge Test:EN 61000-4-5

●CS      Test:EN 61000-4-6

●DIP     Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H(mm): 103*51.5*31.5

40W Desttop Switching Adapter Power 0

Product tables for 40W

40W Desttop Switching Adapter Power 1

Packing & shipping

40W Desttop Switching Adapter Power 2

Down Load
40W Desttop Switching Adapter Power 3
