Shenzhen Power Adapter Co.,Ltd.
Home ProductsDesktop Switching Power Supply

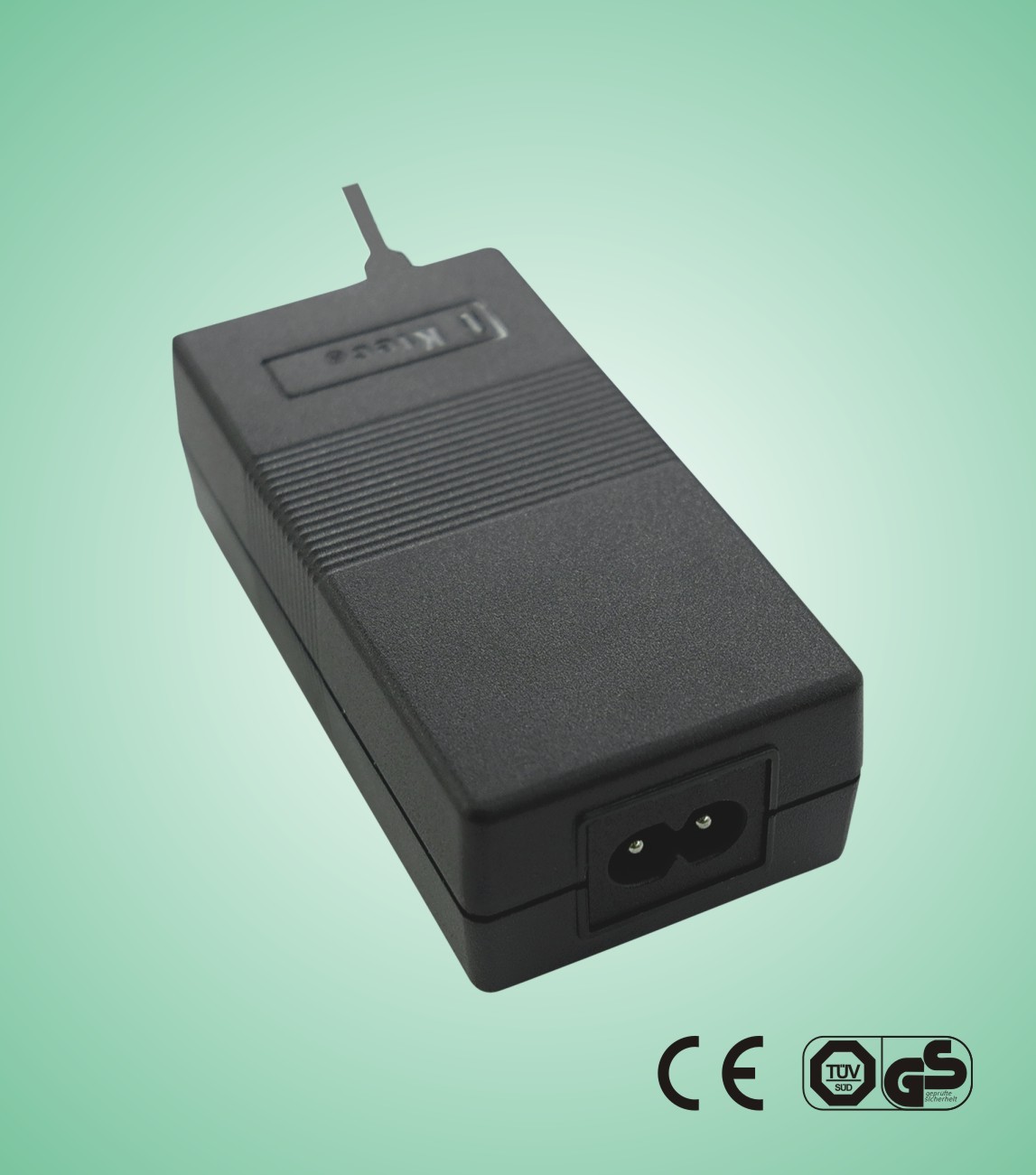

24W Desttop Switching Adapter Power

24W Desttop Switching Adapter Power

  • 24W Desttop Switching Adapter Power
24W Desttop Switching Adapter Power
Product Details:
Place of Origin: Guangdong, China (Mainland)
Certification: UL,CCC,GS,TUV,C-Tick
Model Number: KSAP0241200200M2
Output Type: DC
Usage: Laptop
Connection: Desktop
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Piece/Pieces
Price: Negotiable
Packaging Details: PE bag+ white box
Delivery Time: 35days
Payment Terms: T/T
Supply Ability: 300000 Piece/Pieces per Day
FOB: Shenzhen HK
Contact Now
Detailed Product Description
Highlight:

switching power supply adapter



24W Desttop Switching Adapter Power

Key Features of KSAP0241200200M2

●Light, extra slim, sleek, compact design

●Green power, full complies with CEC level V, MEPS V EUP2011

●High power density

●Completed protect function

●Extra safe design, have got their respective safety approvals

●Completed protect function



Key Applications of KSAP0241200200M2

It’s suitable for an extremely wide range of applications, including:

●Mobile Devices

●Laptop

●Printer

●Pos

●Set-top-box

●ADSL

●Hard disk drive

●Audio & video product

●Household appliance

Input

●Input Voltage:     189 to 264 VAC

●Frequency :         47-50/60-63hz

●Input  current :    0.6A(Max) 100 /240VAC

●Inrush current :  60AMax.240VAC at max. Load

●Leakage current:0.25 mA Max

Output

●Over voltage protection

●Over current protection

  at 110-200% of lo and Auto-recovery

●Electronic short circuit protection

●Operatingtemperature 0~40℃Free convection

●Operating humidity 10-90% RH Non Condensing

●Sea level Non-operating temperature -20~80℃

Safety standards

●Information technology equipmen

●IEC/EN 60950-1

Certificates and approvals

●CB , GS , CE

EMI Emission

●Radiation Test&Conduction Test:EN 55022/FCC Part 15

●Harmonic Test : EN 61000-3-2

●Flicker       Test : EN 61000-3-3

EMS immunity

●ESD   Test:EN 61000-4-2



●RS     Test:EN 61000-4-3

●EFT    Test:EN 61000-4-4

●Surge Test:EN 61000-4-5

●CS      Test:EN 61000-4-6

●DIP     Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H(mm): 103*51.5*31.5

24W Desttop Switching Adapter Power 0

Product tables for 24W

24W Desttop Switching Adapter Power 1

Packing & shipping

24W Desttop Switching Adapter Power 2

Down Load
24W Desttop Switching Adapter Power 3
