Name: 24V AC Wall Mount Power Adapter For Japan ，Retractable / Folding USB Charger
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: W&T-CH05W-D
Price: Negotiable USD
Availability: InStock

Home Products Wall Mount Power Adapter

24V AC Wall Mount Power Adapter For Japan ，Retractable / Folding USB Charger

Product Details:

Place of Origin:	China
Brand Name:	W&T
Certification:	PSE UL FCC
Model Number:	W&T-CH05W-D
Product Name:	Wall Mount Power Adapter
Feature:	Retractable / Folding USB
Plug in:	UK ,US, EU, AUS, JP and KC plug
Application:	Mobile Devices
Output Type:	AC/DC adapter power
Output voltage:	DC 3.00V ~ 24.0V

Contact Now

Detailed Product Description

Highlight:	wall mount power supply

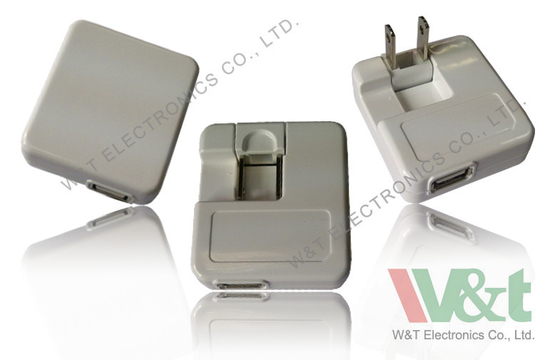

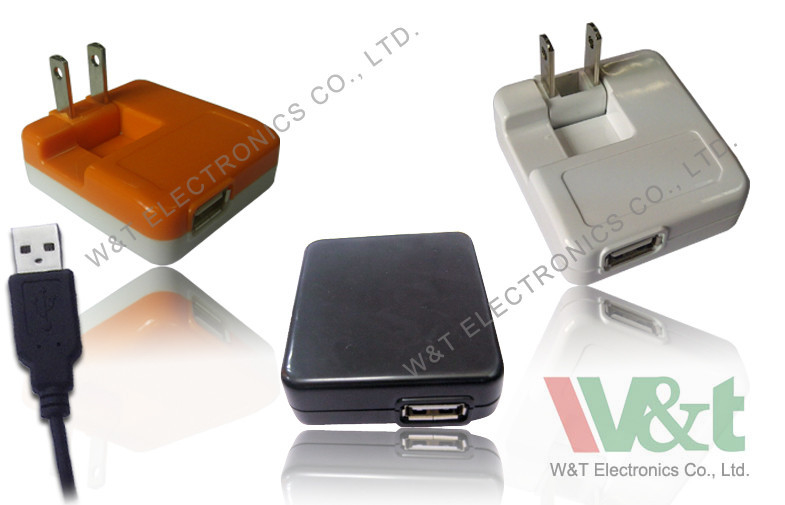

24V AC Wall Mount Power Adapter For Japan ,Retractable / Folding USB Charger

Universal USB AC/DC Charger, USB wall charger with retractable plug, CE, UL Mark, 5W Rated Power, for iPhone 5/4/4S, 100 to 240V AC Input Voltage, Various Colors are Available

5V 500MA, 5V 700MA, 5V 800MA, 5V 1A, 7V 500MA, 7V 600MA, 9V 300MA 9V 400MA, 12V 200MA, 12V 300MA, 12V 400MA, 15V 250MA, 15V 300MA, 15V 250MA, 18V 200MA, 24V 100MA

Quick Detail:

05W W&T USB Series, AC/DC Charger,
Input voltage: 100V-240V AC, 50/60Hz
Range voltage: 86V-265V AC, 47-63Hz
Output power: 1~5W
Output voltage: DC 3.00V ~ 24.0V
Output current range: 200MA~1200MA
Output voltage Ripple & Noise: Output voltage 2% MAX
Efficiency: 65% MIX
M.T.B.F: 50000H
Plug in: UK ,US, EU, AUS, JP and KC,CCC plug

Competitive Advantage:

High efficiency power, High Reliability (Ultra low no-load /standby power consumption)

Ultrasonic Lamination

Natural Cooling

Meets "ENERGY STAR" program requirement

Over voltage protection

Over load & short circuit protection

100% full load burn-in test

Energy Efficiency: Efficiency level V

Meet CEC, Reach and MEPS standard

Rohs compliant

Safety:
PSE, UL, FCC

Application:

It’s suitable for an extremely wide range of applications, including:

• mobile phone, GPS, interphone, walkie talkie, intercom

• Li-lon/ Ni-mh/ Ni-hydrogen/ Lead-acid battery
• Bluetooth speaker

• electric torch, flashlight
• MP3,MP4,MP5,
• Digital camera

• Electric toy and portable medical products charge
• Electric tools and consumer electronics products charge
• Electric cars and communication terminal equipment product charge
• Consumption electronic products
• Tester machine and industrial machine
• Toy and lighting products
• Digital product and radio device
• Medical and exercise device or equipment

Specification:

INPUT	Voltage	90-264VAC universal full range
	Frequency	47-63Hz
	Current	＜0.5A@100V AC input, full load condition
	Inrush Current	＜40A@115V , ＜60A@230V AC input.Cold start at 25℃ ambient
	Leakage Current	＜0.5A@ 264V AC input
OUTPUT	PART NO.	AD05WDX03	AD05WDX42	AD05WDX05	AD05WDX06
	Voltage	0-3.6V	0-4.2V	0-5.0V	0-6.0V
	Max Load	0-1.2A	0-1.0A	0-1.0A	0-0.9A
	Output Tolerance	±5%	±5%	±5%	±5%
	Ripple Noise(MAX)	50mV	50mV	50mV	70mV
	Efficiency(MIN)	≥65%	≥65%	≥65%	≥70%
	Output MAX	6W	6W	6W	6W
PROTECTION	Over Voltage	4.8～5.8V	5.8～6.8V	6.8～7.8V	7.8～8.8V
	Over Voltage	Shutdown and latch off, recover after re-start up
	Over Load & Short Circuit	When power supply over 105%～150 max load or short circuit acted,powr supply will be shutdown and recover automatically after the fault is removed
	Over Temperature	Over 95℃,the power supply will shutdown.
ENIRONMENT	Temperature	Operating:-20～70℃;De-rating:45～70℃:2.5%/℃;Storage:-40～+85℃
ENIRONMENT	Humidity	Operating: 20%～90% RH(non condensing);Storage:10%～95% RH(non condensing)
SAFETY	Withstand voltage	I/P-O/P:3KVAC,I/P-PE:1.5KVAC,O/P-PE:0.5KVAC,1 minute
	Isolation resistance	I/P-O/P,I/P-FG,O/P-FG>100MΩ/500VDC at 25℃/70% RH
	Safety standard	UL 60950-1 2nd,CSA C22.2 No.60950-1-07 2nd,TU EN 60950-1:2006, IEC 60950-1:25005,standard
EMC	EMI	EN 55022 CLASS B,FCC CFR 47 PART 15 CLASS B,CNS 13438 CLASS B
	EMI	Compliance to EN61000-3-2 CLASS D,EN61000-3-3
	EMS	EN55024:EN61000-4-2,3,4,5,6,8,11
OTHERS	Cooling	Natural Cooling
	M.T.B.F.	50K hours
	Dimension	56x50x18mm ( LWH ) K-059-USB
	Packing	N.W.:70g/1pc; 15pcs/1.05kg CUFT/1 CTN
