Name: LCD Display Wall Mount Power Adapter UK 3 PIN And 12 V 800 MA
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: XWY-012-0800-C
Price: Negotiable USD
Availability: InStock

Home Products Wall Mount Power Adapter

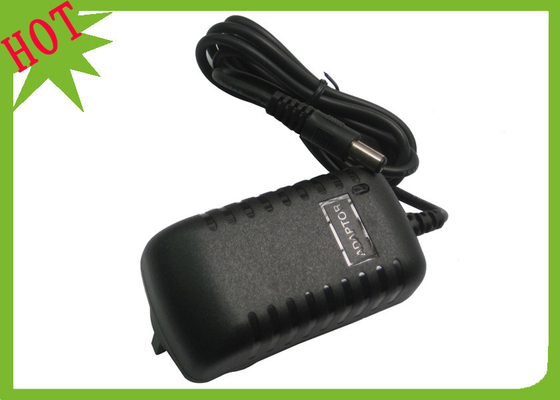

LCD Display Wall Mount Power Adapter UK 3 PIN And 12 V 800 MA

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Xingweiye
Certification:	CE RoHs FCC
Model Number:	XWY-012-0800-C
DC Voltage:	12V
Rated Current:	800mA
Raded Power:	10W
AC Inrush Current:	50A/230V
Input Voltage range:	100~240 V AC 50~60 Hz
AC Current (Max):	0.15A/220V, 0.25A/110V

Contact Now

Detailed Product Description

Highlight:	Portable Power adapter

LCD Display Wall Mount Power Adapter UK 3 PIN And 12 V 800 MA

Quick Detail:

•All products have been checked and packaged in good condition before dispatch
•Fast delivery time.
•Protections: Short circuit/Over load/Over voltage
•9 years production experience in power supply.
•Low power consumption, high reliability
•100% full loading burn-in test

Description:
Universal AC Input (full range)

10W 12V800mA POWER ADAPTER

Dimension: 74*29*42mm (L'W'H')

Specifications:

Input Voltage range	100~240 V AC 50~60 Hz
Efficiency	> 80%
AC Current (Max)	0.15A/220V, 0.25A/110V
AC Inrush Current	50A/230V
DC Voltage	12V
Rated Current	800mA
Raded Power	10W
Plug standard	EU,AU,UK,US, CHN,etc, available
DC power Jack	5.52.1mm, 5.52.5mm, 3.5*1.35mm, etc
Ripple & noise(Max)	mVp-p about 8% voltage out
Load Regulation	±1%
Overload protection	130%~150%
OverVolt protection	115%~135%
WorkingTemp	0~40°C
Working humidity.	10%~90% RH
Storage temp humidity	10%~90%RH
Packing	White box

Competitive Advantage:

1. Factory direct sales: Wholesale discounts & good quality
2. Timely delivery time: 1-7 days
3. OEM and ODM: Any your custonized lightings we can help your design put into product
4. Certification: Our products are mostly certified by CE, LVD, RoHS, EMC, FCC
5. Good service: Your inquiry related to our products or prices will be replied in 24hours. Well-trained and experienced staffs to answer all your enquires in fluent English

Applications:

○ LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
○ Communications and security products;
○ Digital and electronic products, industrail equipment.
○ Fiber transceivers, game player, LED, CCTV camera;
○ Mini PC / PDA / Laptop / Notebook products, etc.
○ Household Electrical Appliance
