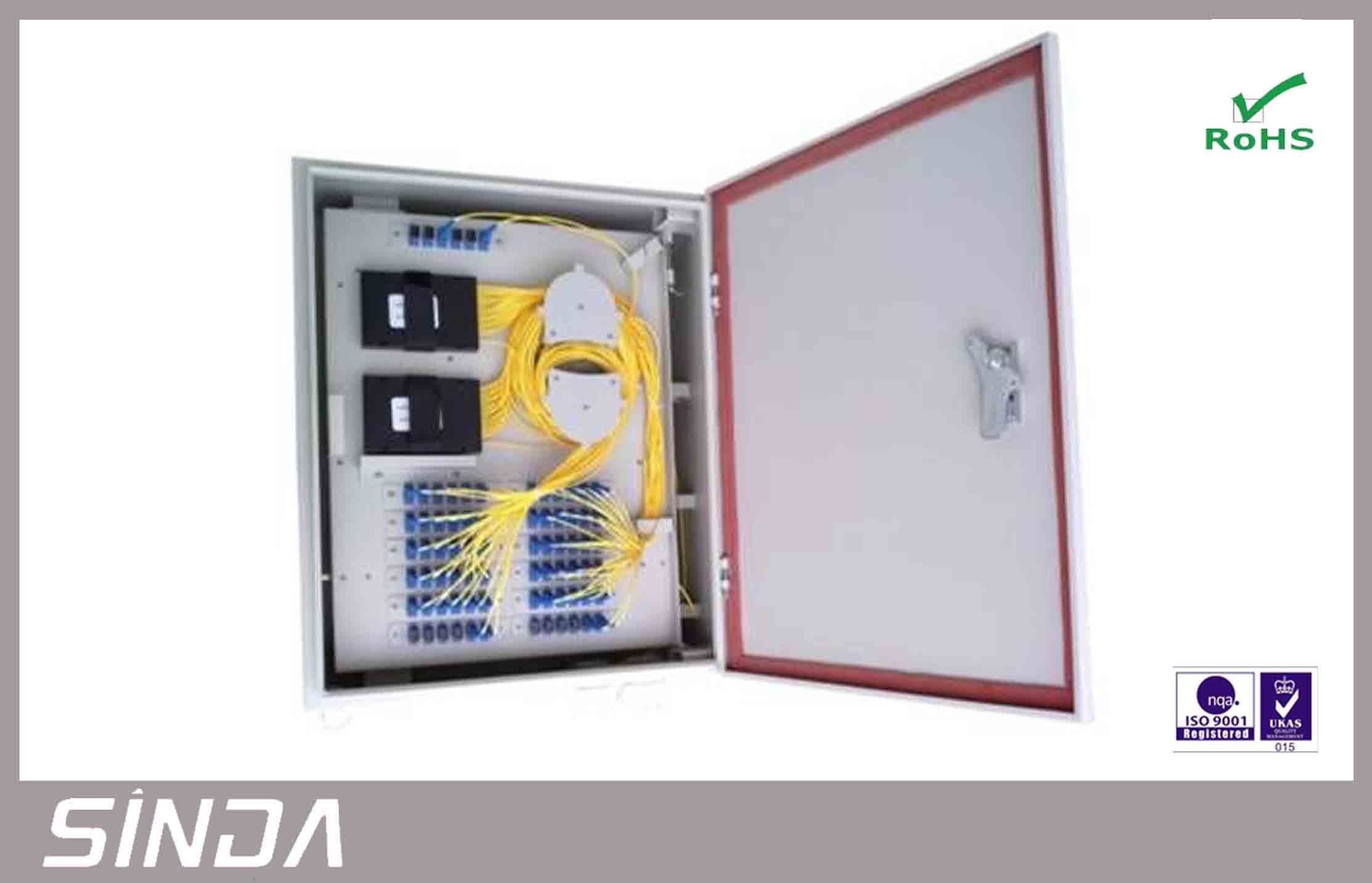

Fiber Optic PLC Splitter with Wall Mount Box , Optical Fiber wall mount Box
Quick Detail:
Place of Origin: Guangdong China (Mainland)
Cores: 12/24/48/72
Available: SC/FC/LC/ST
Feature 1: Single door/Double door
Feature 2: Outdoor and Indoor wall mounting
Feature 3: The case box is made of cold rolled steel sheet, electrostatic sprayin
Standard Size: 1U/2U/3U
Dimension(mm) 1: 455*405*80/120/150
Dimension(mm) 2: 350*350*80
Case Color: White
Description:
-The case box is made of cold rolled steel sheet, electrostatic spraying.
-Double door lockable
-Outdoor wall mounting.
-Provide 12-24 adaptors, available for FC/SC/ST/LC.
Applications:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
Specifications :
| P.N |
Dimension (mm) |
Max Capacity (cores) |
| SD-WMB-01-24 |
455-405-80 |
24 |
| SD-WMB-01-48 |
455-405-120 |
48 |
| SD-WMB-01-72 |
455-405-150 |
72 |
| SD-WMB-02-48 |
455-405-120 |
48 |
| SD-WMB-02-72 |
455-405-150 |
72 |
| SD-WMB-03-24 |
350-350-80 |
24 |
| SD-WMB-04-FC12 |
350-300-80 |
12 |
| SD-WMB-04-SC12 |
| SD-WMB-04-FC24 |
24 |
| SD-WMB-04-SC24 |
Competitive advantages:
Our products fiber optic cable, fiber optic patch cord,fiber optic adapter, fiber optic connector, fiber optic PLC Splitter, Fiber optic splice closure, Fiber optic patch panel, fiber optic media converter, fiber optic odf, fiber optic test equipment conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize the feasible proposal. We are making our efforts to be the industrial production chain base of fiber optic connector production, making our name well known all over the world . We always insists on the policy of customer first and quality first, holding the quality conception through the production process, stage by stage to control quality so as to consolidate our base.
All our products have been exported to many foreign countries like India, UAE, Germany, France, USA, Korea, Russia etc. The products are widely used in telecom, broadcast & television, power engineering, as well as some other industries . Besides,we have established close business relationship with the prestigious of telecommunication companies at home and abroad.
We wish to create better future of optical communication industry jointly with both new and existing customers.
