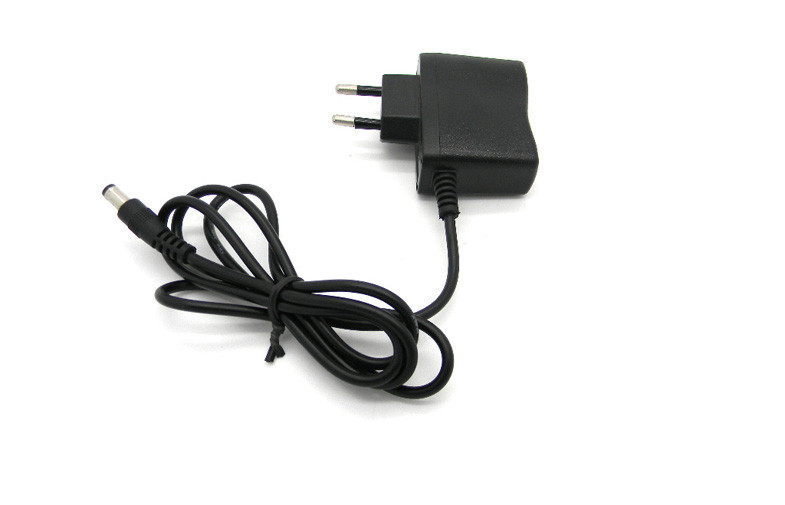

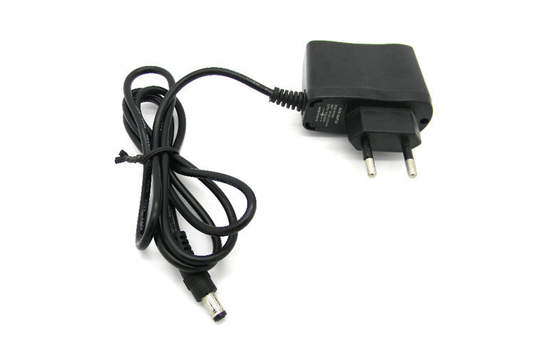

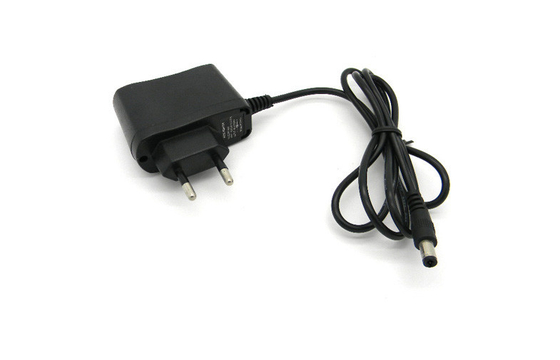

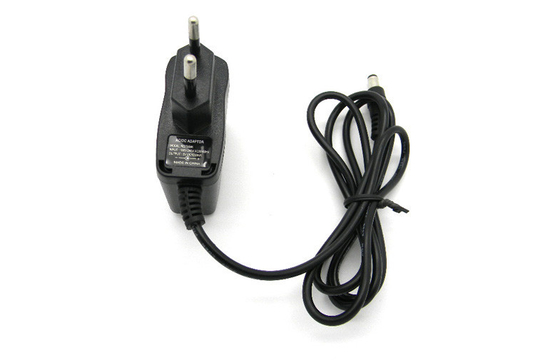

Name: 5V 1000mA Wall Mount Power Supplies 5.5x2.1mm EU Plug , 50Hz / 60Hz
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: RT-WMA-0500100
Price: Negotiable USD
Availability: InStock

Home Products Wall Mount Power Adapter

5V 1000mA Wall Mount Power Supplies 5.5x2.1mm EU Plug , 50Hz / 60Hz

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	RAYTOP
Certification:	CE, RoHS, FCC
Model Number:	RT-WMA-0500100

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	Negotiable
Packaging Details:	PE Bag, Master Carton, Customer package available.
Delivery Time:	15-20 working days.
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	200,000 Pcs monthly.

Contact Now

Detailed Product Description

Product Name:	5V 1A Wall Mount Power Adapter	Input:	AC10-240V, 50/60Hz, 0.3A
Output:	5V, 1A / 6V 1A, 12V 0.5A	AC Plug:	EU,US,UK,SAA,CCC
AC Cable:	2x0.5mm2, 1.2M	DC Plug:	AWG24, 1.2M
DC Connector:	5.5x2.1mm, 5.5x2.5mm	Color:	Black
Protection:	Short Circuit Protection, Over Voltage Protection, Over Load Protection
Highlight:	Wall Mount Power Supply

China Supplier High Quality 5V 1000mA Wall Mount Power Supplies DC Tip 5.5x2.1mm

Description:

This is an wallmount style AC/DC power adapter, which convert AC mains into constant low votage 5V output. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.

Input: AC100-240V, 0.3A max.

Frequency: 50/60Hz

Output: DC5V, 1000mA

DC Cable: 24AWG, Copper, length: 1.2M

Plug: EU, UK, US, SAA, CCC

Efficiency: 80%

Features:

-World wide voltage input;

-High efficiency:>80%;

-Protection: Short circuit protection, over voltage protection, over current protection;

-MTBF: 50,000 hours;

-Low ripple and nosie;

-Approval: UL,CSA,CE,CCC,CB,GS,C-tick,PSE,SAA,KC,S-mark,FCC,WEEE,RoHS PAHs REACH

-Warranty: 2 years.

Specifications:

Input	Rated Input Voltage	AC100~240V
	Input Voltage Range	AC 90~264V
	Rated Frequency	50/60 Hz
	Input Frequency Range	47~63 Hz
	Input AC Current	0.2A
	Inrush Current	30A
Output	Rated Output Voltage	DC5V
	Rated Output Current	1000mA
	Rated Power	5W
	Ripple and Noise	150mV p-p
	Standby Power Consumption	0.3W
	Turn-on	5s
	Hold-up	20s
	Over Voltage Protection	Yes
	Over Current Protection	Yes
	Short Circuit Protection	Yes, automatically recover after short circuit removed.
Reliability	Hi-pot	3000Vac
	Insulation Resistance	Input to output at 500Vdc
	Leakage Current	5mA
	EMI Standards	FCC Part 15B Class B
	RoHS Compliant	Yes
	MTBF	50,000 hours
	Burn-in	40+/-5 ℃, full load, 12 hours
	Drop Test	6 direction, each one time from height 1.0M
Environmental	Operating Temperature	0~40℃
	Operating Humidity	10~80%
	Storage Temperature	-20~65℃
	Storage Humidity	0~90%
Safety Approvals	CE, RoHS, FCC, UL, SAA
Warranty	2 Years
