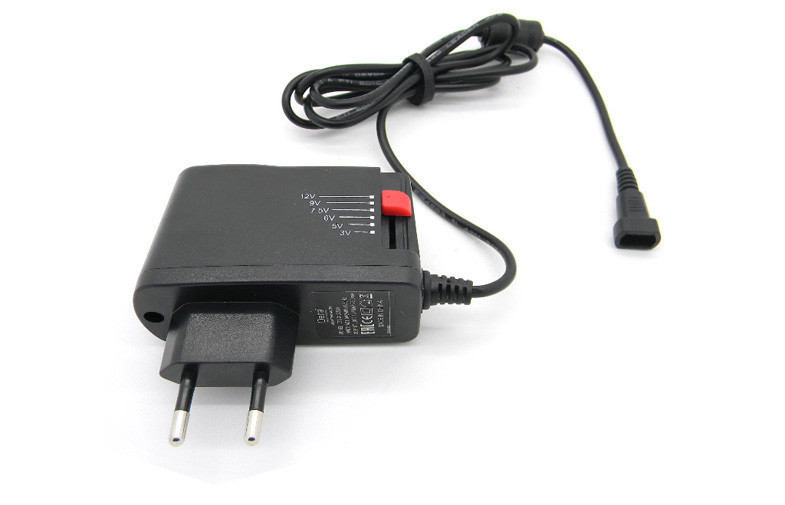

High Efficency AC/DC Wall Mount Power Adapter 2500mA 30W For SATA / ADSL

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	RAYTOP
Certification:	CE, RoHS, FCC
Model Number:	RT-MPA03123000A

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	Negotiable
Packaging Details:	Color box, 200PCS/Carton
Delivery Time:	15-20 working days.
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	200,000 Pcs monthly.

Contact Now

Detailed Product Description

Product Name:	3-12V Universal AC/DC Adapter	Input:	AC100-240V, 50/60Hz, 1.0A
Output:	3.0/4.5/5.0/6.0/9.0/12.0VDC	Current:	Max. 2500mA
AC Plug:	EU,US, UK,SAA,CCC	DC Cable:	24AWG, 1.2M
Protection:	Short Circuit, Over Voltage,Over Current
Highlight:	Wall Mount Power Supply

6 DC Tips 2500mA Universal Adjustable Voltage 3-12V AC DC Power Adapter

Descriptions:

This is an universal AC adapter come with 8 different size tips, its output vary from 3.0 to 12.0 DC. The users can adjust the red switch slip to get the needed working voltage.

Switching mode power adapter with multiple rated output voltage DC 3.0

/5.0/6.0/7.5/9.0/12.0V. 8 different tips guarantee the great compatibility with many devices such as Router, POS System, Security Cameras, Tablets etc.

Specs:

Input: AC100-240V, 1.0A max.

Frequency: 50/60Hz

Output: DC3/5.0/6.0/7.5/9.0/12.0V

Output Current: 2500mA

DC Cable: 22AWG, Copper, length: 1.2M

Plug: EU, UK, CCC,US, SAA and other standards plugs

8 different size tips.

Features:

-High efficiency:>83%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.

Approval: CE, RoHS, FCC

Warranty: 2 years

Applications:

Widely used for Router, POS System, Security Cameras, Tablets etc.

Specifications:

Input	Rated Input Voltage	AC100~240V
	Input Voltage Range	AC 90~264V
	Rated Frequency	50/60 Hz
	Input Frequency Range	47~63 Hz
	Input AC Current	300mA
	Inrush Current	30A
Output	Rated Output Voltage	DC3/5/6/7.5/9/12V
	Rated Output Current	2500mA
	Rated Power	30W
	Ripple and Noise	150mV p-p
	Standby Power Consumption	0.5W
	Turn-on	5s
	Hold-up	20s
	Over Voltage Protection	Yes
	Over Current Protection	Yes
	Short Circuit Protection	Yes, automatically recover after short circuit removed.
Reliability	Hi-pot	3000Vac
	Insulation Resistance	Input to output at 500Vdc
	Leakage Current	5mA
	EMI Standards	FCC Part 15B Class B
	RoHS Compliant	Yes
	MTBF	50,000 hours
	Burn-in	40+/-5 ℃, full load, 12 hours
	Drop Test	6 direction, each one time from height 1.0M
Environmental	Operating Temperature	0~40℃
	Operating Humidity	10~80%
	Storage Temperature	-20~65℃
	Storage Humidity	0~90%
Safety Approvals	CE, RoHS, FCC, UL, SAA
Warranty	2 Years
