Name: 1000mA 12W Wall Mount Power Adapter Ajustable 3V - 12V With SAA Plug
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: RT-MPA-03121200A
Price: Negotiable USD
Availability: InStock

Home Products Wall Mount Power Adapter

1000mA 12W Wall Mount Power Adapter Ajustable 3V - 12V With SAA Plug

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	RAYTOP
Certification:	CE, RoHS, FCC
Model Number:	RT-MPA-03121200A

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	Negotiable
Packaging Details:	Gift box and blister, 200 PCS/Carton
Delivery Time:	15-20 working days.
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	20,000 Pcs per month.

Contact Now

Detailed Product Description

Input:	Australia Plug Universal AC Adapter	Cable Material:	Copper
DC Cable:	1.2M	EMI Standards:	FCC Part 15B
Voltage Selection Mananer:	Manual	MTBF:	50000 Hours
Output:	3/5/6/7.5/9/12V DC	Output Power:	12W
Plug:	SAA	Protection:	Short Circuit, Over Voltage, Over Current
Highlight:	Wall Mount Power Supply

SAA Plug 3-12V Current 1000mA Universal Wall-mount AC Adapter 8 DC Tips

Description:

This is universal AC/DC power adapter, which can convert AC mains into 6 output3.0/5.0/

6.0/7.5/9.0/12.0DC, and maximum current 1000mA. 8 different tips guarantee the great compatibility with many electronic devices such as Router, POS System, Security Cameras, Tablets etc.

Input: AC100-240V, 50/60Hz, 0.5A Max.

Output: DC3.0/5.0/6.0/7.5/9.0/12.0V

DC Cable: 22AWG, Copper, length: 1.2M

AC Plug: EU, UK, US, CCC, SAA

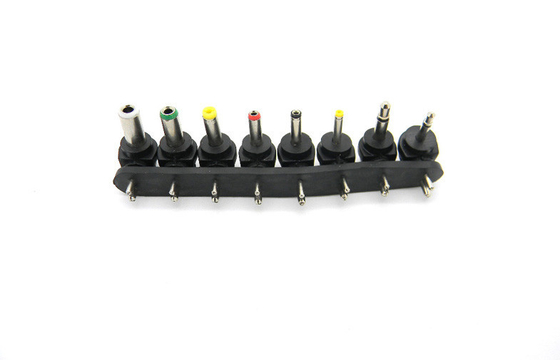

8 Tips: 2.5x0.7mm, 3.0x1.1mm,3.5x1.35mm,3.5mm,5.5x2.1mm,5.5x2.5mm, 2.5x12mm,

3.5x15mm,4.0x1.7mm

Features:

-High efficiency:>85%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.

-Approval: CE, RoHS, FCC

-Warranty: 2 years

Specifications:

Input	Rated Input Voltage	AC100~240V
	Input Voltage Range	AC 90~264V
	Rated Frequency	50/60 Hz
	Input Frequency Range	47~63 Hz
	Input AC Current	200mA
	Inrush Current	30A
Output	Rated Output Voltage	DC3/5/6/7.5/9/12V
	Rated Output Current	1000mA
	Rated Power	12W
	Ripple and Noise	150mV p-p
	Standby Power Consumption	0.3W
	Turn-on	5s
	Hold-up	20s
	Over Voltage Protection	Yes
	Over Current Protection	Yes
	Short Circuit Protection	Yes, automatically recover after short circuit removed.
Reliability	Hi-pot	3000Vac
	Insulation Resistance	Input to output at 500Vdc
	Leakage Current	5mA
	EMI Standards	FCC Part 15B Class B
	RoHS Compliant	Yes
	MTBF	50,000 hours
	Burn-in	40+/-5 ℃, full load, 12 hours
	Drop Test	6 direction, each one time from height 1.0M
Environmental	Operating Temperature	0~40℃
	Operating Humidity	10~80%
	Storage Temperature	-20~65℃
	Storage Humidity	0~90%
Safety Approvals	CE, RoHS, FCC, UL, SAA
Warranty	2 Years
