Place of Origin: | Shenzhen,China |
Brand Name: | RAYTOP |
Certification: | CE, RoHS, FCC |
Model Number: | RT-WMA-1600200 |
Minimum Order Quantity: | 1 PCS |
---|---|
Price: | US$1.9-2.3 per unit |
Packaging Details: | White box, Color Box or Blister, 200 PCS/Carton |
Delivery Time: | 15-20 working days |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 200,000 Pcs monthly. |
Style: | Wall Mount Power Supply | Used For: | Adapter For Security Access Control |
---|---|---|---|
Output: | 16V 2A | Input: | AC100-240V |
Function 1: | Charger For Security Camera | Function 2: | Charger For Security Appliance |
Function 3: | Charger For Security Alarm System | ||
Highlight: | ac to dc power converter |

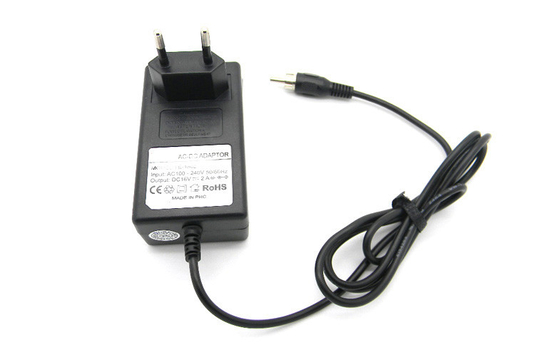

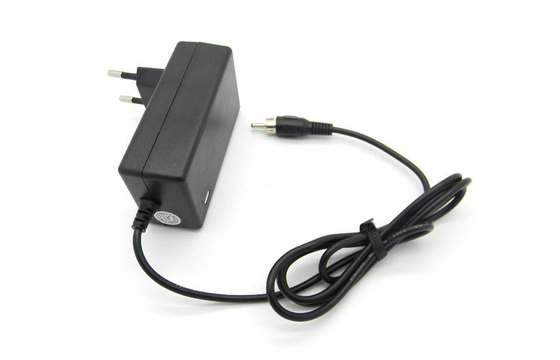

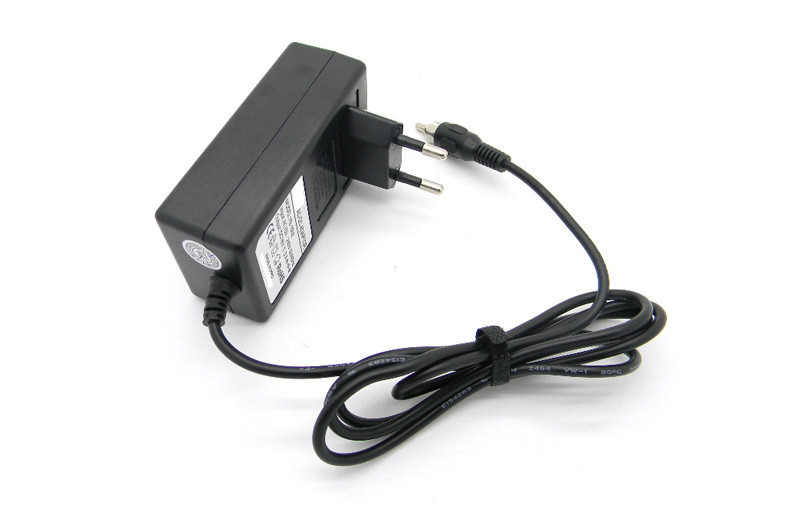

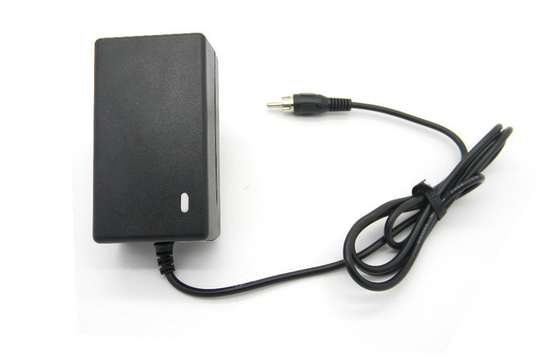

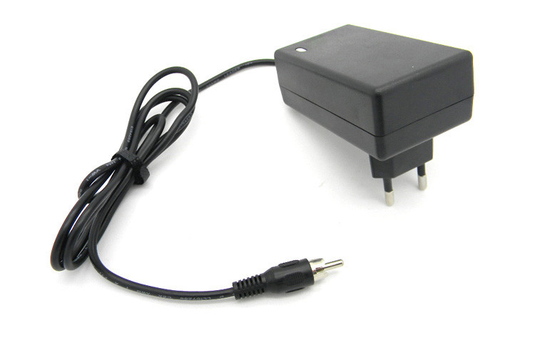

100-240VAC Input EU Plug 16V 2A Wall-mount Power Adapter RCA Jack for Santral
Description:
This is an true power high frequency switching mode power adapter 16V 2A, with excellent quality in conformity with CE, RoHS, FCC standard.
Input: AC100-240V, 50/60Hz, 500mA max.
Output: DC16V, 2000mA
DC Tip: RCA Jack
AC Plug: EU 2 Pin;
DC Cable: 20AWG, 1.2M
Protections: Short circuit, over voltage, over current protections
Features:
-High efficiency:>82%;
-Protection: Short circuit protection, over voltage protection, over current protection.
-Long lifespan;
-2 Years warranty.
-Approval: CE, RoHS, FCC
Specifications:
Input |
Rated Input Voltage |
AC100~240V |
Input Voltage Range |
AC 90~264V |
|
Rated Frequency |
50/60 Hz |
|
Input Frequency Range |
47~63 Hz |
|
Input AC Current |
500mA |
|
Inrush Current |
30A |
|
Output |
Rated Output Voltage |
DC16V |
Rated Output Current |
2000mA |
|
Rated Power |
32W |
|
Ripple and Noise |
150mV p-p |
|
Standby Power Consumption |
0.5W |
|
Turn-on |
5s |
|
Hold-up |
20s |
|
Over Voltage Protection |
Yes |
|
Over Current Protection |
Yes |
|
Short Circuit Protection |
Yes, automatically recover after short circuit removed. |
|
Reliability |
Hi-pot |
3000Vac |
Insulation Resistance |
Input to output at 500Vdc |
|
Leakage Current |
5mA |
|
EMI Standards |
FCC Part 15B Class B |
|
RoHS Compliant |
Yes |
|
MTBF |
50,000 hours |
|
Burn-in |
40+/-5 ℃, full load, 12 hours |
|
Drop Test |
6 direction, each one time from height 1.0M |
|
Environmental |
Operating Temperature |
0~40℃ |
Operating Humidity |
10~80% |
|
Storage Temperature |
-20~65℃ |
|
Storage Humidity |
0~90% |
|
Safety Approvals |
CE, RoHS, FCC, UL, SAA |
|
Warranty |
2 Years |
Applications:
This power adapter has vase application such as Set top Box, Massager, Car refrigerator, Water dispenser, Cable television, Optical transmitter and receiver, Scanner, Santral etc.
-Open private model w/o extra cost for you;
-0.3% free backup of order quantity;
-Direct factory price without middle man.
-High performance-to-price ratio;
-Perfect after-sale service
