Name: 12V 500mA Wall Mount Power Adapter
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: ET1200500
Price: Negotiable USD
Availability: InStock

Home Products Wall Mount Power Adapter

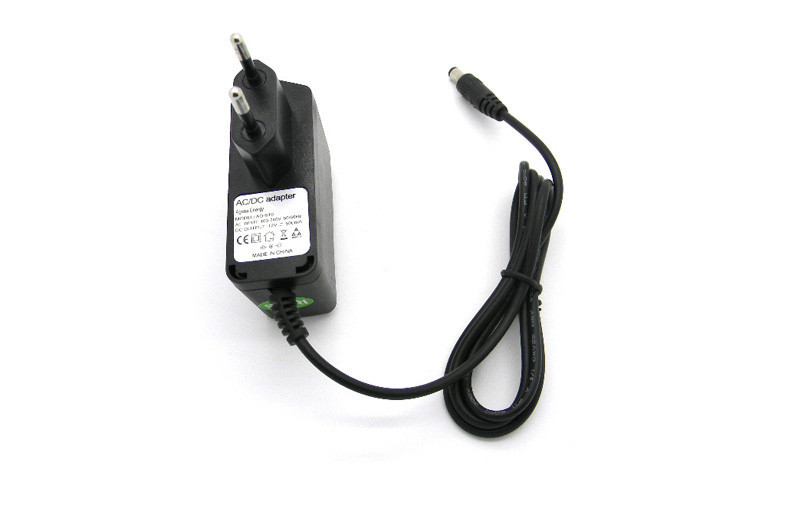

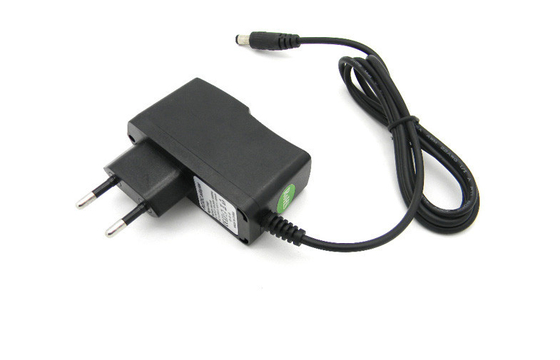

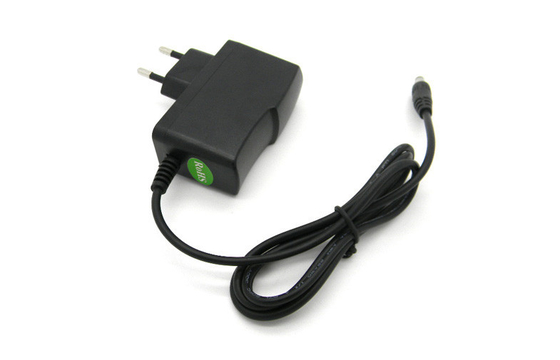

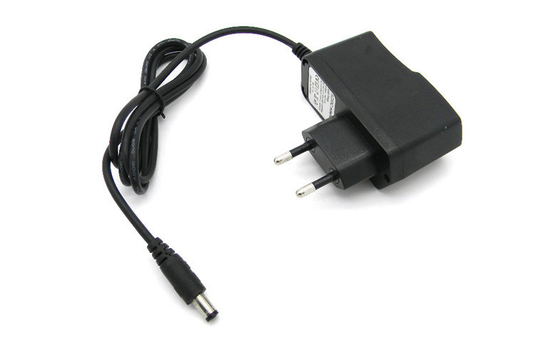

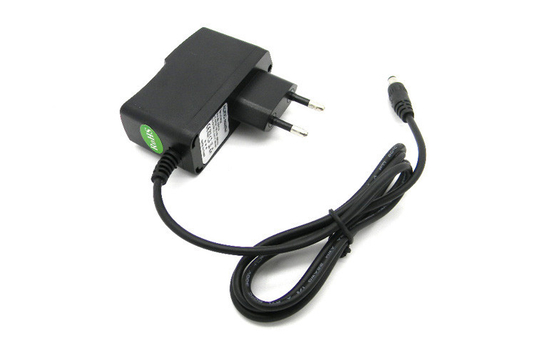

12V 500mA Wall Mount Power Adapter

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	RAYTOP
Certification:	CE, RoHS, FCC
Model Number:	ET1200500

Payment & Shipping Terms:

Minimum Order Quantity:	2K
Price:	Negotiable
Packaging Details:	PE Bag, Master Carton, Customer package available.
Delivery Time:	15-20 work days.
Payment Terms:	T/T, L/C
Supply Ability:	200,000 Pcs monthly.

Contact Now

Detailed Product Description

AC Cable:	1.2M	Application:	Telephones
Approval:	CE, RoHS, FCC, UL, SAA	Cable Material:	Copper
DC Cable:	1.2M	EMI Standards:	FCC Part 15B
Feature:	Impact Resistance	Frequency:	50Hz / 60Hz
Input:	AC100-240V	MTBF:	50000 Hours
Operating Temperature:	0~40℃	Output:	12V
Output Power:	6W	Plug:	EU, US, UK, SAA, CCC
Product Name:	AC To DC Power Adapter	Protection:	Short Circuit, Over Voltage, Over Current
Highlight:	ac to dc power converter

12V 500mA Wall Mount Power Adapter Impact Resistance RoHS For Telephones

Quick Detail:

12V,500mA Wall mount power adapter, tip 5.5x2.1mm, with CE, RoHS, FCC, UL, SAA certificates. DC cable 24AWG, 1.2M length for different kinds of electronic devices usage.

Specs:

Input: AC100-240V, 300mA max.

Frequency: 50/60Hz

Output: DC12V, 500mA

DC Cable: 22AWG, Copper, length: 1.2M

Plug: EU, UK, US, SAA, CCC

Features:

-High efficiency:>82%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.

-Compact design, light weight, easy to carry.

Approval: CE, RoHS, FCC

Warranty: 2 years

Description:

This is an universal AC adapter come with single output tip 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.

Note:

indoor use only.

Applications:

used for radio, wireless telephone, CD, DVD devices, interphone, electronic organ etc.

Specifications:

Input	Rated Input Voltage	AC100~240V
	Input Voltage Range	AC 90~264V
	Rated Frequency	50/60 Hz
	Input Frequency Range	47~63 Hz
	Input AC Current	0.3A
	Inrush Current	30A
Output	Rated Output Voltage	DC12V
	Rated Output Current	500mA
	Rated Power	6W
	Ripple and Noise	150mV p-p
	Standby Power Consumption	0.3W
	Turn-on	5s
	Hold-up	20s
	Over Voltage Protection	Yes
	Over Current Protection	Yes
	Short Circuit Protection	Yes, automatically recover after short circuit removed.
Reliability	Hi-pot	3000Vac
	Insulation Resistance	Input to output at 500Vdc
	Leakage Current	5mA
	EMI Standards	FCC Part 15B Class B
	RoHS Compliant	Yes
	MTBF	50,000 hours
	Burn-in	40+/-5 ℃, full load, 4 hours
	Drop Test	6 direction, each one time from height 1.0M
Environmental	Operating Temperature	0~40℃
	Operating Humidity	10~80%
	Storage Temperature	-20~65℃
	Storage Humidity	0~90%
Safety Approvals	CE, RoHS, FCC, UL, SAA
Warranty	2 Years
