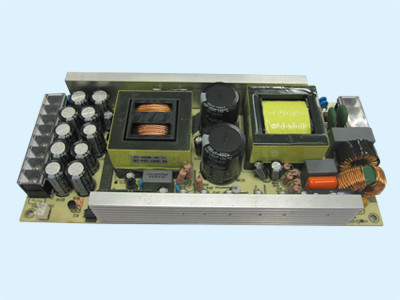

High Power Open Frame Power Supply 500w 57v , Power Factor Built In

Product Details:

Place of Origin:	China
Brand Name:	HIC
Certification:	ISO
Model Number:	P570P8800

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	L/C T/T,Paypal

Contact Now

Detailed Product Description

Highlight:	universal ac power adapters

High Power Open Frame Power Supply 500w 57v , Power Factor Built In

Feature:

. Universal AC Input / Full Input
. Power Factor Built in , PF > 0.93
. Protections: Overload, Short Circuit
. High Reliability , Compesitive Cost
. Warranty : 2 Years
. Used On Security Equipment , Lighting Etc.

Description:

500W 57V Open Frame Power Supply With PFC High Reliability

Electronics Specification :
Input Voltage Range:	90~264Vac
AC current:	3.0A
PF :	> 0.93
Frequency:	50 / 60Hz
Inrush Current:	30A / 230Vac
Leakage Current:	<0.25mA / 240Vac
Output Voltage :	57.0 Vdc
Voltage Tolerance :	±5%
Output Current :	8.80A
Output Power :	501.6W ( Max. )
Line regulation:	±1%
Load regulation:	±5%
Efficiency:	Meet energy star level V(CEC)
Over current protection:	Hiccup mode, Auto recovery
Over voltage protection:	Power shutdown, Auto recover
Environment :
Working Temp.:	0~40℃
Working Humidity:	20%~90% RH non-condensing
Storage Temp. & Humidity:	-20℃~85℃, 10%~95% RH
Reliability :
Hi-Pot Testing Voltage :	I/P to O/P : 3.0 (60Sec.) KVac
Safety Standard :	EN60950
EMI Standard :	EN55022B
Safety Approval :
Certificate	CE , REACH , ROHS
Mechanical Characteristics :
PCB Size:	215mm * 95mm * 40mm ( L * W * H )
AC connector	VH-2,Pin=3.96mm
DC connector:	WH-4,Pin=3.96mm

Extension Output Data

Model No.	Voltage	Current range	Ripple & Noise	Eff.
P120P30000	12.0V	0.1~30.0A	120mV	>85%
P150P30000	15.0V	0.1~30.0A	150mV	>85%
P190P26000	19.0V	0.1~26.0A	190mV	>85%
P200P25000	20.0V	0.1~25.0A	200mV	>85%
P240P20000	24.0V	0.1~20.0A	240mV	>85%
P320P15000	32.0V	0.1~15.0A	320mV	>85%
P360P13800	36.0V	0.1~13.8A	360mV	>85%
P480P10000	48.0V	0.1~10.0A	480mV	>85%
P570P08800	57.0V	0.1~8.8A	570mV	>85%

Applications:

widely used in household appliances, IT digital products, medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
