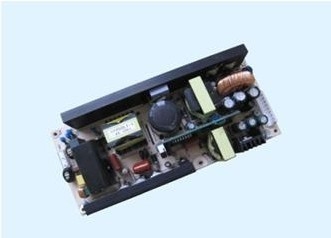

Dual Output Power Supply Open Frame 250W With PFC , 90Vac - 264Vac

Product Details:

Place of Origin:	China
Brand Name:	HIC
Certification:	ISO
Model Number:	PFOD250-A

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	L/C T/T,Paypal

Contact Now

Detailed Product Description

Highlight:	universal ac power adapters

Dual Output Power Supply Open Frame 250W With PFC , 90Vac - 264Vac

Feature:

. Full Input Range
. Power Factor Built in , PF > 0.93
. Protections: Overload, Short Circuit
. High Reliability , Compesitive Cost
. Warranty : 2 Years
. Used On Security Equipment , Lighting Etc.

Description:

250W Dual Output Open Frame Power Supply With PFC

Electronics Specification :
Input Voltage Range:	90~264Vac
AC current:	3.0A
PF :	> 0.93
Frequency:	50 / 60Hz
Inrush Current:	30A / 230Vac
Leakage Current:	<0.25mA / 240Vac
Output Voltage :	CH1 : 12V ~ 48Vdc ; CH2 : 5Vdc
Voltage Tolerance :	±5%
Output Current :	8.30A
Output Power :	250.0W ( Max. )
Line regulation:	±1%
Load regulation:	±5%
Efficiency:	Meet energy star level V(CEC)
Over current protection:	Hiccup mode, Auto recovery
Over voltage protection:	Power shutdown, Auto recover
Environment :
Working Temp.:	0~40℃
Working Humidity:	20%~90% RH non-condensing
Storage Temp. & Humidity:	-20℃~85℃, 10%~95% RH
Reliability :
Hi-Pot Testing Voltage :	I/P to O/P : 3.0 (60Sec.) KVac
Safety Standard :	EN60950
EMI Standard :	EN55022B
Safety Approval :
Certificate	CE , REACH , ROHS
Mechanical Characteristics :
PCB Size:	222mm * 95mm * 40mm ( L * W * H )
AC connector	VH-2,Pin=3.96mm
DC connector:	WH-4,Pin=3.96mm

Extension Output Data :

Model No.		Voltage	Current range	Ripple & Noise	Eff.
PFOD250-A	CH1	12.0V	0.1~15.0A	120mV	>83%
PFOD250-A	CH2	5.0V	0.1~5.0A	50mV	>83%
PFOD250-B	CH1	24.0V	0.1~9.4A	150mV	>86%
PFOD250-B	CH2	5.0V	0.1~5.0A	50mV	>86%
PFOD250-C	CH1	36.0V	0.1~6.3A	200mV	>86%
PFOD250-C	CH2	5.0V	0.1~5.0A	50mV	>86%
PFOD250-D	CH1	48.0V	0.1~4.7A	200mV	>86%
PFOD250-D	CH2	5.0V	0.1~5.0A	50mV	>86%

Applications:

widely used in household appliances, IT digital products, medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
