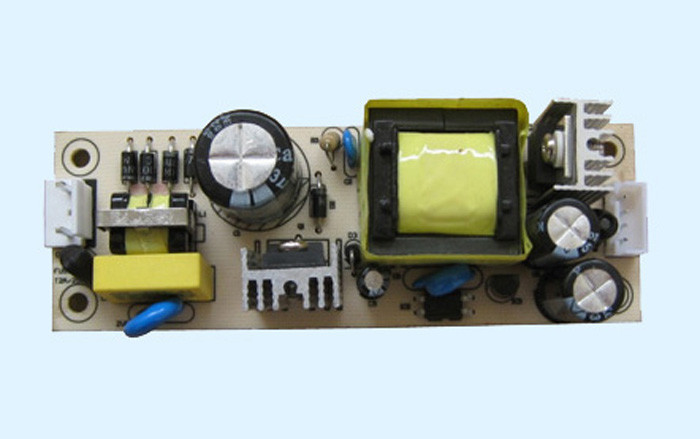

4A Small Open Frame Power Supply For Household Appliances , 5vdc - 36vdc

Product Details:

Place of Origin:	China
Brand Name:	HIC
Certification:	ISO
Model Number:	P050P4000

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	L/C T/T,Paypal

Contact Now

Detailed Product Description

Highlight:	universal ac power adapters

4A Small Open Frame Power Supply For Household Appliances , 5vdc - 36vdc

Feature:

. Universal AC Input

. No Load Consumption < 0.3W

. Protections: Overload, Short Circuit

. Low Cost, High Reliability

. 2 Years Warranty

Description:

5V4A open frame power supply customized power supply small size

Electronics Specification :
Input Voltage Range:	90~264Vac
AC current:	0.7A
Frequency:	50/60Hz
Inrush Current:	30A/230Vac
Leakage Current:	0.25mA/240Vac
Output Voltage:	5.0~36.0Vdc
Voltage tolerance:	±5%
Line regulation:	±1%
Load regulation:	±5%
Efficiency:	Meet energy star level V(CEC)
Over current protection:	Hiccup mode, Auto recovery
Over voltage protection:	Power shutdown, Auto recover
Environment :
Working Temp.:	0~40℃
Working Humidity:	20%~90% RH non-condensing
Storage Temp. & Humidity:	-20℃~85℃, 10%~95% RH
Reliability :
Hi-Pot Testing Voltage :	I/P to O/P : 3.0 (60Sec.) KVac
Safety Standard :	EN60950
EMI Standard :	EN55022B
Safety Approval :
Certificate	CE , REACH , ROHS
Mechanical Characteristics :
PCB Size:	65mm40mm32mm (LWH)
AC connector	VH-2,Pin=3.96mm
DC connector:	WH-4,Pin=2.54mm

Output Data

Model No.	Voltage	Current range	Ripple & Noise	Eff.
P050P4000	5.0V	0.1~4.0A	50mV	>72%
P060P4000	6.0V	0.1~4.0A	60mV	>72%
P075P3000	7.5V	0.1~3.0A	75mV	>72%
P090P2600	9.0V	0.1~2.6A	90mV	>72%
P120P2000	12.0V	0.1~2.0A	120mV	>80%
P150P1600	15.0V	0.1~1.6A	150mV	>80%
P190P1250	19.0V	0.1~1.25A	190mV	>80%
P200P1200	20.0V	0.1~1.2A	200mV	>80%
P240P1000	24.0V	0.1~1.00A	240mV	>80%
P320P0740	32.0V	0.1~0.74A	320mV	>80%
P360P0670	36.0V	0.1~0.67A	360mV	>80%

Applications:

widely used in household appliances, IT digital products, medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
