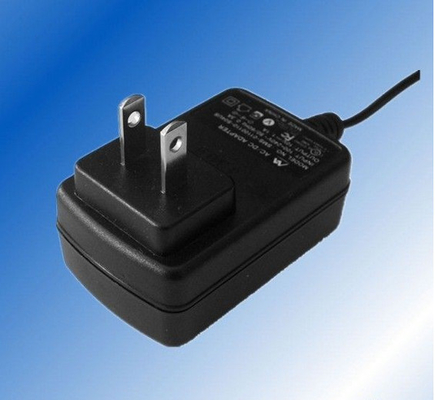

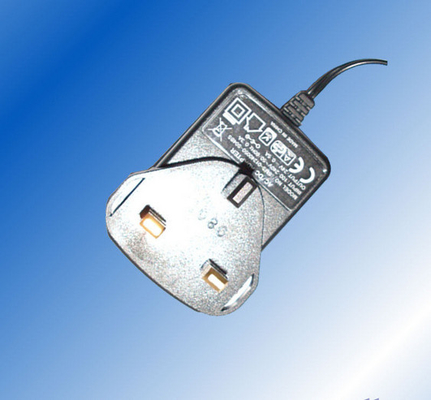

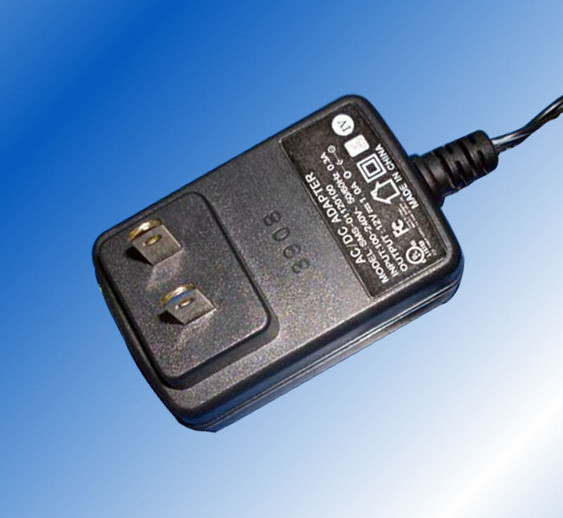

European Network Wall Mount Power Adapter 12V DC 1A 12W EN61000 3-3
Feartures:
> input voltage range: 100~240VAC
> output: 12V 1A
> Effiency: 85% minimum
> Ripple and Noise: 80mV maximum
> Color: Black or white
> Dc cable length: 1.5 meters
> DC jack: 5.5*2.1*10mm
> Weight: 90g
> AC Plug: US , EU , AU ,UK plug avaliable
> Safety protection: over load, over voltage, short ciruict, open load protection.
Specifications:
|
Input Rated Voltage :
|
100Vac~240Vac
|
|
Input Frequency Range:
|
47Hz~63Hz
|
|
Input Inrush Current :
|
0.3A max
|
|
Efficiency :
|
85%(MIN)at Rated Voltage
|
|
Output:
|
12V 1000mA
|
|
Output power :
|
12W
|
|
Ripple and Noise :
|
<80Mv at full road with 20MHz bandwidth
|
|
Turn On Delay Time:
|
<3S (AC:110V and full load)
|
|
Safety protection :
|
over voltage and current protection.
|
|
Leakage Current:
|
<5mA
|
|
USB connector:
|
5.5*2.1*10mm
|
|
Operating Temperature:
|
0°C----+60°C
|
|
Storage Temperature:
|
-20°C----+85°C
|
|
Certificate:
|
CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK
|
|
Safety Standard :
|
EN60950-1 UL60950-1 ESD (EN61000 3-3)
CAS (60950 ITE/TE) FCC Part 15 subpart B Class B
AN/NZS CISPR 22:2006
|
|
Application:
|
For battery charger, mobile phone, cell phone, iphone etc…
|
MODEL LIST:
|
12W SERIES
|
|
Model
|
Input Voltage
|
Power
|
Output Voltage
|
Output Current
|
Plug type
|
|
SMS-01090100-S04ZZ
|
100-240VAC
|
9W
|
9V
|
1A
|
EU,US,UK,AU
|
|
SMS-01100100-S04ZZ
|
100-240VAC
|
10W
|
10V
|
1A
|
EU,US,UK,AU
|
|
SMS-01050200-S04ZZ
|
100-240VAC
|
10W
|
5V
|
2A
|
EU,US,UK,AU
|
|
SMS-01060200-S04ZZ
|
100-240VAC
|
12W
|
6V
|
2A
|
EU,US,UK,AU
|
|
SMS-01120100-S04ZZ
|
100-240VAC
|
12W
|
12V
|
1A
|
EU,US,UK,AU
|
|
SMS-01240050-S04ZZ
|
100-240VAC
|
12W
|
24V
|
0.5A
|
EU,US,UK,AU
|
|
SMS-01XXXYYY-S04ZZ
|
SMS-01XXXYYY-S04ZZ ( XXX=030-240 means the output voltage is 3-24V
|
|
YYY=001-500, means the output current is 0.01-5.00A
|
|
ZZ= US, AU,EU,BS(means US plug, AU plug, UK plug,)
|
DRAWING:
EMC Standards & Safety Standards / EMC Standards
1.1. EMC Standards
|
GB9254
|
GB17625.1
|
GB13837
|
FCC- Part15
|
|
EN 55022
|
EN55024
|
CISPR 22
|
EN 61000-4-4
|
|
EN 61000-3-2
|
EN 61000-3-3
|
EN 61000-4-2
|
EN 61000-4-3
|
|
EN 61000-4-5
|
EN 61000-4-6
|
EN 61000-4-8
|
EN 61000-4-11
|
1.2. Safety Standards
|
Type
|
Country
|
Standard
|
Type
|
Country
|
Standard
|
|
CCC
|
China
|
GB4943
|
CE
|
Europe
|
EN60950-1
|
|
CCC
|
China
|
GB8898
|
CB
|
CB
|
IEC60950
|
|
UL/CUL
|
USA
|
UL60950-1
|
C-TICK
|
Australia
|
AS/NZ60950
|
|
KC
|
Korea
|
KC60950
|
GS/TUV
|
German
|
EN60950
|
INSTRUCTION:
- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
- The mains plug is used as the disconnect device, the disconnect device shall be readily operable.
- The socket-outlet shall be installed near the equipment and shall be easily accessible.
- No naked flame source, such as lighted candles, should be placed on the apparatus.
- Maximum operating ambient for the equipment is 40℃.
- The apparatus should not be used in a confined space such as a bookcase.
- This appliance is not intended for use by persons (including children) with reduced physical,
sensory, or mental capacities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their Safety.
- Children should be supervised to ensure that they do not play with the appliance.
