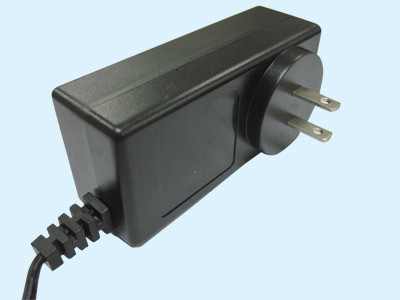

Name: Universal Wall Mount Power Adapter 12V 3A 36W , High Reliability 2 Pole US Plug
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: P120W3000U
Price: Negotiable USD
Availability: InStock

Home Products Wall Mount Power Adapter

Universal Wall Mount Power Adapter 12V 3A 36W , High Reliability 2 Pole US Plug

Product Details:

Place of Origin:	China
Brand Name:	HIC
Certification:	ISO
Model Number:	P120W3000U

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	L/C T/T,Paypal

Contact Now

Detailed Product Description

Highlight:	cell phone power adapter

Universal Wall Mount Power Adapter 12V 3A 36W , High Reliability 2 Pole US Plug

Feature:

. Input Voltage : 90 ~ 264 Vac

. 2 pole US

. Class II power (without earth pin)

. No load consumption < 0.3W

. Full output 5.0Vdc~36.0Vdc safety approval

. Protections: Overload, Short Circuit

. Approved by UL / CE / CB / C-TICK

. 2 year warranty

Description:

Low Cost High Reliability12V3A 36W Wall Mount Power Adapter

Electronics Specification:
Input Voltage Range:	90~264Vac
AC current:	0.7A
Frequency:	50/60Hz
Inrush Current:	30A/230Vac
Leakage Current:	0.25mA/240Vac
Output Voltage:	5.0~36.0Vdc
Voltage tolerance:	±5%
Line regulation:	±1%
Load regulation:	±5%
Efficiency:	Meet energy star level V
Over current protection:	Hiccup mode, Auto recovery
Over voltage protection:	Power shutdown, Auto recover
Environment
Working Temp.:	0~40℃
Working Humidity:	20%~90% RH non-condensing
Storage Temp. & Humidity:	-20℃~85℃, 10%~95% RH
Reliability
Hi-Pot Testing Voltage :	I/P to O/P : 3.0 (60Sec.) KVac
Safety Standard :	EN60950
EMI Standard :	EN55022B
Safety Approval:
Certificate	UL, CE, FCC, C-TICK,CB
Mechanical Characteristics
Size:	105mm45mm27.8mm (LWH)
AC connector	US /EU plug
DC Cable:	1.8M
DC connector:	5.52.112mm, other type connector avaible

Extension Output Data

Model No.	Voltage	Current range	Ripple & Noise	Eff.
P050W5000U	5.0V	0~5.0A	50mV	>72%
P075W4000U	7.5V	0~4.0A	75mV	>72%
P090W4000U	9.0V	0~4.0A	90mV	>72%
P120W3000U	12.0V	0~3.0A	120mV	>75%
P150W2400U	15.0V	0~2.4A	150mV	>75%
P180W2000U	18.0V	0~2.0A	180mV	>80%
P220W1600U	22.0V	0~1.60A	220mV	>80%
P240W1500U	24.0V	0~1.50A	240mV	>80%
P320W1125U	32.0V	0~1.125A	320mV	>80%
P360W1000U	36.0V	0~1.00A	360mV	>80%

Certificate:

Applications:

widely used in household appliances, IT digital products, medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
