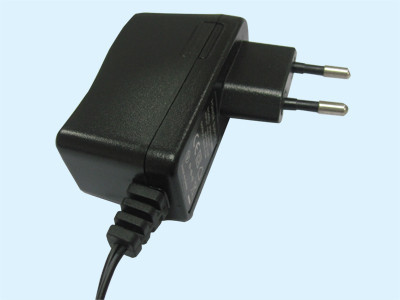

cell phone power adapter

Electronics Specification :

Input Voltage Range:

90~264Vac

AC current:

0.3A

Frequency:

50/60Hz

Inrush Current:

30A/230Vac

Leakage Current:

0.25mA/240Vac

Output Voltage:

12.0Vdc

11.4 ~ 12.6 Vdc

1.0A

> 80%

Ripple and Noise :

< 100mVp-p

Line regulation:

±1%

Load regulation:

±5%

Efficiency:

Meet energy star level V

Over current protection:

Hiccup mode, Auto recovery

Over voltage protection:

Power shutdown, Auto recover

Environment :

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability :

Hi-Pot Testing Voltage :

I/P to O/P : 3.0 (60Sec.) KVac

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval :

Certificate

CE, FCC, C-TICK

Mechanical Characteristics :

Size:

74.5mm * 30mm * 40mm (L*W*H)

AC connector

EU plug

DC Cable:

1.8M

DC connector:

5.5*2.1*12mm, other type connector avaible
