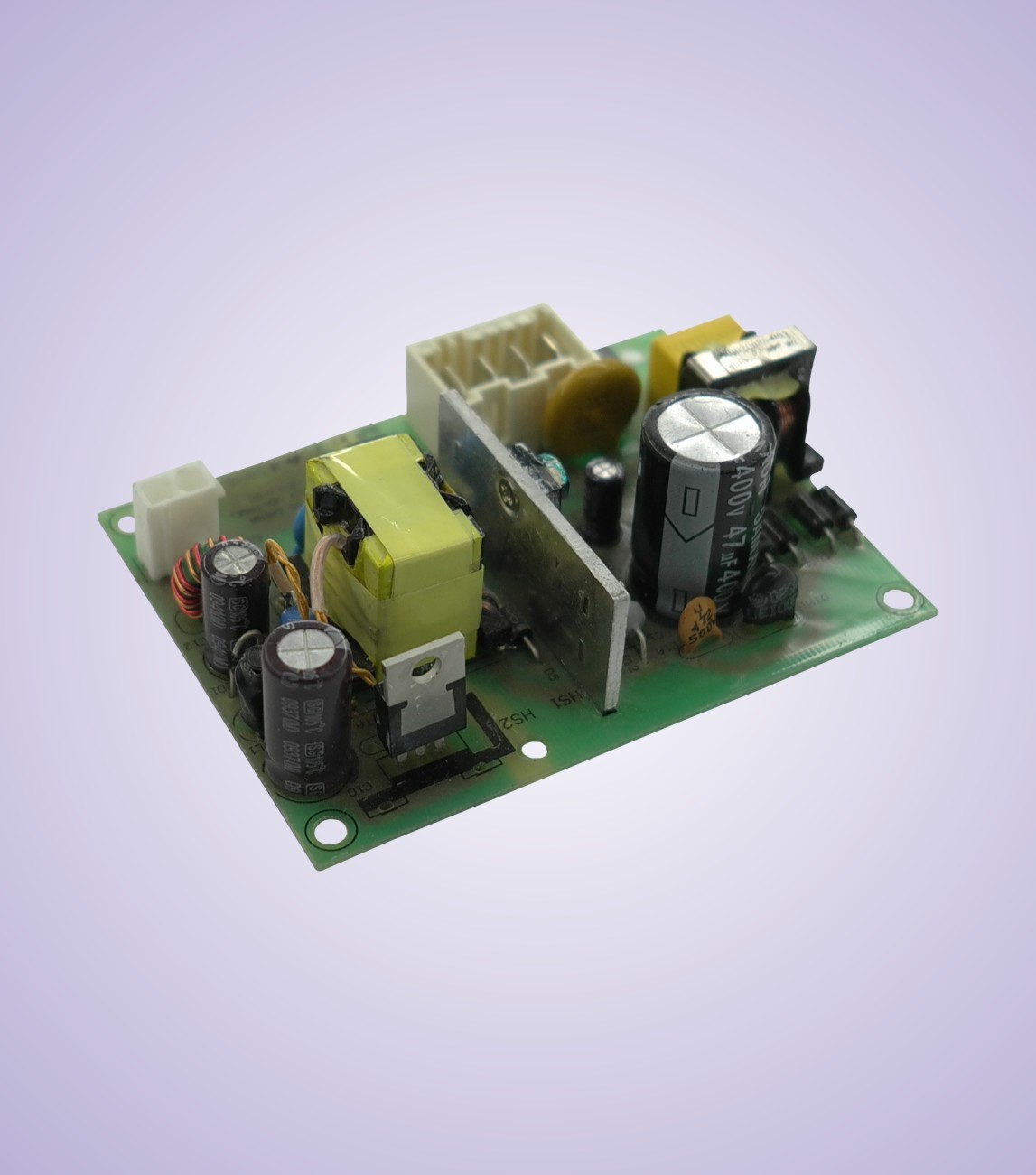

25W 100v / 110v / 120V 47 -50 / 60 - 63 hz AC, DC Open Frame Power Supplies (portable)

25W 100v / 110v / 120V 47 -50 / 60 - 63 hz AC, DC Open Frame Power Supplies (portable)

  • 25W 100v / 110v / 120V 47 -50 / 60 - 63 hz AC, DC Open Frame Power Supplies (portable)
  • 25W 100v / 110v / 120V 47 -50 / 60 - 63 hz AC, DC Open Frame Power Supplies (portable)
25W 100v / 110v / 120V 47 -50 / 60 - 63 hz AC, DC Open Frame Power Supplies (portable)
Product Details:
Place of Origin: China
Brand Name: HIC
Certification: ISO
Model Number: KSOP025
Output Type: AC
Usage: Switching
Port: Hong Kong Shenzhen
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C T/T,Paypal
Contact Now
Detailed Product Description
Highlight:

universal power adapter

Key features of KSOP0251400180

●Light, extra slim, sleek, compact design

●Green power, full complies with CEC level V MEPS V EUP2011

●High power density

●Extra safe design, have got their respective safety approvals

●ompleted protect function



Key Applications of KSOP0251400180

It’s suit for an extremely wide range of applications including:

●Set-top-box

●ADSL

●Hard disk drive

●Audio & Video product

●Household applianec

●Washing machine

Input

●Input Voltage :      100 to 120 VAC

●Frequency :           47-50/60-63hz

●Input current :       0.8A(Max) 120 /240VAC

●Inrush current :    50AMax.120VAC at max. Load

●Leakage current: 0.25 mA Max

Output

●Over voltage protection

●Over current protection

   at 110-200% of lo and Auto-recovery

●Electronic short circuit protection

●Operatingtemperature 0~75℃Free convection

●Operating humidity 10-80% RH Non Condensing

●Sea level Non-operating temperature -20~80℃

Safety standards

●Information technology equipment

●UL1310

Certificates and approvals

●UL1310 SAFETY

EMI Emission

●Radiation Test&Conduction Test: EN 55022/FCC Part 15

●Harmonic Test : EN 61000-3-2

●Flicker       Test : EN 61000-3-3

EMS immunity

●ESD   Test: EN 61000-4-2



●RS     Test: EN 61000-4-3

●EFT    Test: EN 61000-4-4

●Surge Test: EN 61000-4-5

●CS      Test: EN 61000-4-6

●DIP     Test: EN 61000-4-11

Mechanical SPEC

Dimension L*W*H(mm): 89*67*28

Product tables for 25W

Packing & shipping

Down Load
