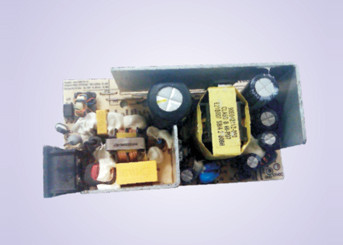

Name: I.T.E Use 42W 12V / 3.15A 4.6V / 0.8A Open Frame Power Supplies (47hz - 50hz / 60 - 63 hz)
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: KS042
Price: Negotiable USD
Availability: InStock

Home Products Open Frame Power Supplies

I.T.E Use 42W 12V / 3.15A 4.6V / 0.8A Open Frame Power Supplies (47hz - 50hz / 60 - 63 hz)

Product Details:

Place of Origin:	China
Brand Name:	HIC
Certification:	ISO
Model Number:	KS042
Output Type:	AC
Usage:	Switching
Port:	Hong Kong Shenzhen

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	L/C T/T,Paypal

Contact Now

Detailed Product Description

Highlight:	universal ac power adapters

Key Features of KSO42-2
●En60950 ITE Safety Approvals
●Ambient Temp Range(0℃ to 60 )
●E.Cap life more than 6 years
●EMI level B Production connect GND
●Output:12V/3.15A, 4.6V/0.8A
●Reliability level of 44K hours MTBF @ 60℃

Key Applications of KSO42-2
It's suit for an extremely wide range of
applications, including:
●General I.T.E Use
●Set-top-box
●ADSL
●Hard disk drive
●Audio & Video product
●Household appliance
●Washing machine

Input

●Input Voltage: 180 to 264 VAC

●Frequency : 47-50/60-63hz

●Input Current : 1.0A (Max)

●Inrush Current : 45A Max 230VAC at max Load

●Leakage Current:0.25mA Max

Output

●Over voltage protection

●Over current protection

at 110-200% of lo and Auto-recovery

●Over temperature protection

●Electronic short circuit protection

●Operatingtemperature 0~40℃ Free convection

●Operating humidity 10-90% RH Non Condensing

●Sea level Non-operating temperature -20~80℃

Safety standards

●Information technology equipment
●IEC/EN 60950-1, BS EN 60950-1:2006

Certificates and approvals

●Applied with customer’s products

EMI Emission

●Radiation Test&Conduction Test: EN 55022/FCC Part 15

EMS immunity

●E S D      Test:EN 61000-4-2
●R S          Test:EN 61000-4-3
●E F T       Test:EN 61000-4-4
●S u r g e Test:EN 61000-4-5
●C S          Test:EN 61000-4-6
●D I P        Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H (mm) : 110x58x38mm

Product tables for 42W

Packing & shipping

Down Load

Click Down
