Name: 50W Open Frame Power Supplies
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: KSOH
Price: Negotiable USD
Availability: InStock

Home Products Open Frame Power Supplies

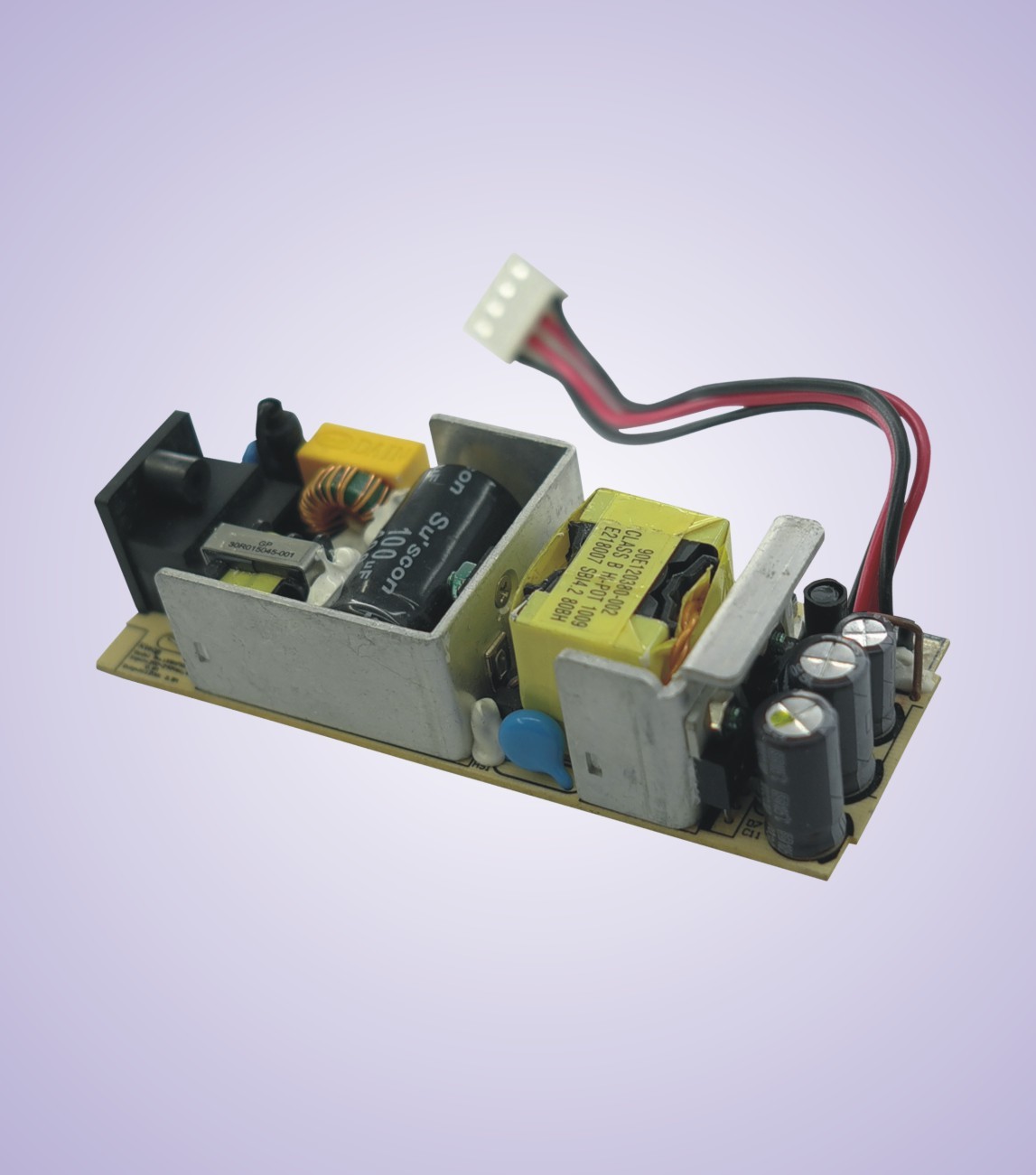

50W Open Frame Power Supplies

Product Details:

Place of Origin:	China
Brand Name:	HIC
Certification:	ISO
Model Number:	KSOH
Output Type:	AC
Usage:	Switching
Port:	Hong Kong Shenzhen

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	L/C T/T,Paypal

Contact Now

Detailed Product Description

Highlight:	universal power adapter

Key Features of KSOH1200350
●En60950 ITE Safety Approvals
●Ambient Temp Range(0℃ to 60℃)
●E.Cap life more than 6 years
●EMI level B Production connect GND
Output:12V/3.5A
●Reliability level of 50K hours MTBF @ 60℃

Key Applications of KSOH1200350
It's suit for an extremely wide range of
applications, including:
●General I.T.E Use
●Set-top-box
●ADSL
●Hard disk drive
●Audio & Video product
●Household appliance
●Washing machine

Input

●Input Voltage: 90 to 264 VAC
●Frequency: 47-50/60-63hz
●Input Current: 1.0A (Max)
●Inrush Current:45A Max 230VAC at max Load
●Leakage Current:0.25mA Max

Output

●Over voltage protection
●Over current protection

at 110-200% of Io and Auto-recovery

●Over temperature protection
●Electronic short circuit protection

●Operating temperature 0~40 free convection

●Operating humidity 10-90% RH Non Condensing

● Sea level Non-operating temperature -20~ 80℃

Safety standards

●Information technology equipment

●IEC/EN 60950-1, BS EN 60950-1:2006

Certificates and approvals

●Applied with customer’s products

EMI Emission

●Radiation Test&Conduction Test: EN 55022/FCC Part 15

●Harmonic Test: EN 61000-3-2

EMS immunity

●E S D    Test:EN 61000-4-2
●R S        Test:EN 61000-4-3
●E F T      Test:EN 61000-4-4
●S u r g e Test:EN 61000-4-5
●C S         Test:EN 61000-4-6
●D I P      Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H (mm) :115*45**30mm

Product tables for 50W

Packing & shipping

Down Load

Click Down
