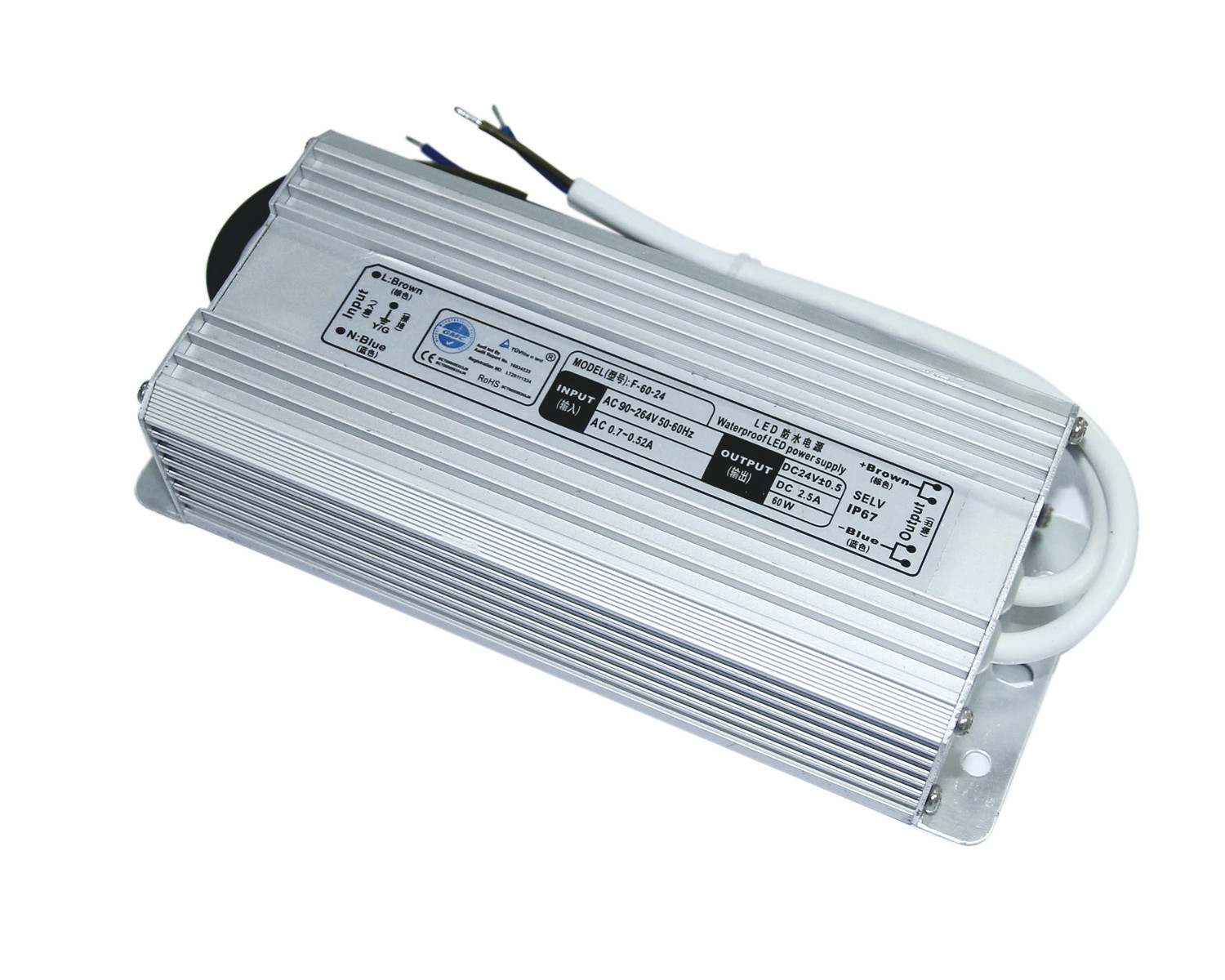

Name: Portable 24 V DC 60W Waterproof LED Driver Power Supply Platic Case With EN55022 Class A
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: F-60-24
Price: Negotiable USD
Availability: InStock

Home Products Waterproof LED Driver

Portable 24 V DC 60W Waterproof LED Driver Power Supply Platic Case With EN55022 Class A

Product Details:

Place of Origin:	China
Brand Name:	HIC
Certification:	ISO
Model Number:	F-60-24
Product Name:	Waterproof LED Driver
Safety standards:	EN55022 class A
IP:	IP67
Current:	2.5A
Output Power:	60W
Output voltage:	24V DC

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	L/C T/T,Paypal

Contact Now

Detailed Product Description

Highlight:	LED Strip Power Supply

Over-current Protection Waterproof LED Driver Power Supply 60W 24V DC 2.5A IP68 EPA3060A

Competitive Advantage:

•IP67 protection grade

•100% load test, built-in EMI filters

•Full range of input voltage

•output voltage accurate and stable

•Output over-voltage, over-current and short-circuit protection

•Output low ripple and noise

•Two year warranty

•Average working no trouble ＞50, 000 hours

Application:

It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.

Specifications:

Product Electric Parameters
Input specification	Input voltage		AC90V---264V
	Input frequency		47-63Hz
	Input surge		20A@120VAC 40A@230VAC
Output specification	Start-up time		≦1S (230V Input, Io=100%)
	keep time		≧20mS (230V Input, Io=100%)
	Voltage regulation		(full)≦0.5%
Protection function	Overload protection		105% - 150% rated power, automatic recovery
	Over-voltage protection		105% - 150% of the rated voltage
Insulation intensity	Input---output		1500VAC/1min
	Input--ground		1500VAC/1min
	Output---ground		500VAC/1min
Safety standards	According with GB4943, EN60950-1 ; EPA3050B:1996; EN1122:2001 ; EPA3052:1996; EPA3060A; EPA7196; EPA3540C;EPA8270C standards.
E M C standards	According with EN55022 class A EN61347-2-13:2008 standards
Environmental	working temperature	- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
	Storage temperature	- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
	height above sea level	≦2000M
Structure	Size (mm)	175(L)72(W)45(H)
Cooling method	Cooling method	Natural cooling air convection
Weight	0.87KG/Pcs
